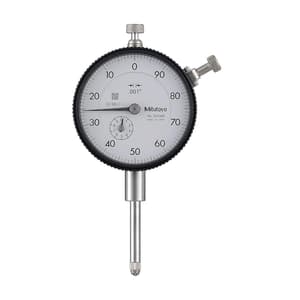

• Long stroke dial indicators with a ø57 mm bezel. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The stem and the spindle are made of high- strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide contact point is employed.
• The grand gear is made of stainless steel with high resistance to wear and deformation.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without any tools.
• These cannot be used on water-proof models and models with a measuring range of 30 mm.

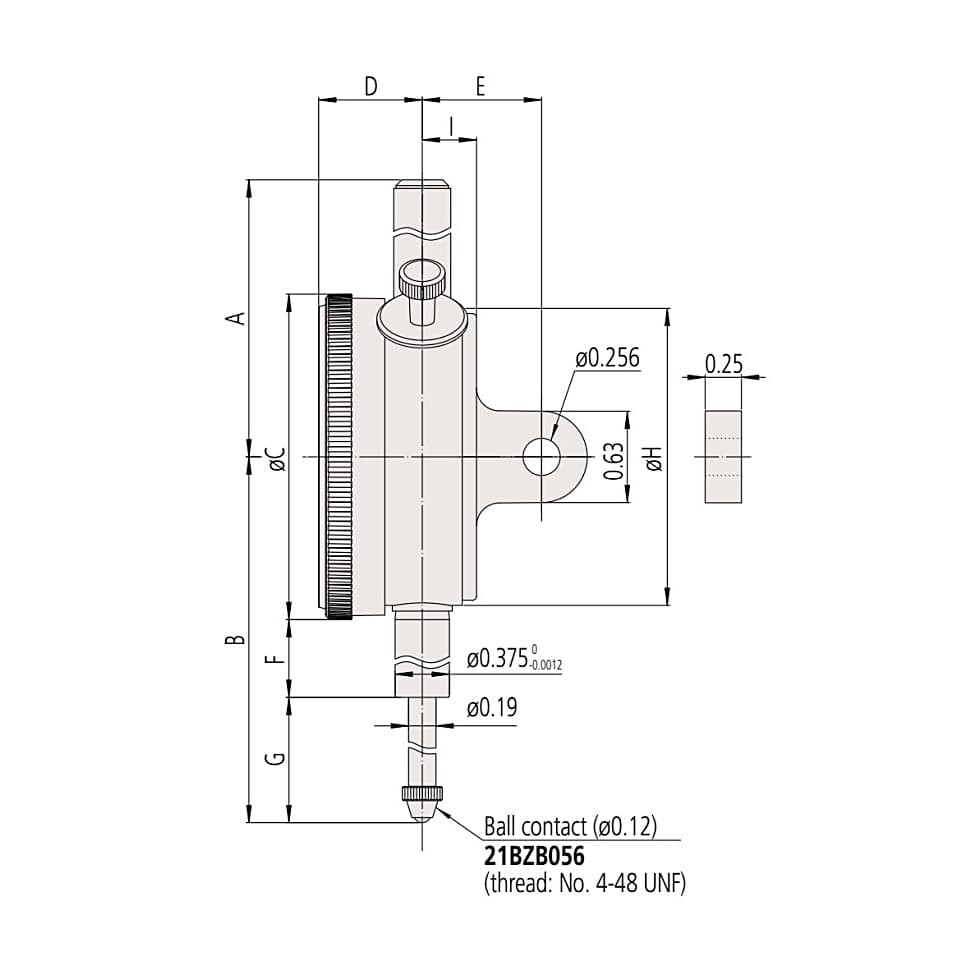

Dimension Measurement (inch)

A: 1.53 inch B: 3.02 inch C: 2.24 inch D: 0.70 inch E: 3/4 inch F: 0.54 inch G: 1.37 inch H: 2.05 inch I: 0.30 inch

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
