Mitutoyo 0 - 1 mm Standard Type Dial Indicator with Flat Back, 2109AB-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 139 g
- Type of Product: Dial Indicator
- Range (mm): 0 - 1 mm
- Graduation (mm): 0.001 mm
- Dial Reading: 0-100-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,027 (Incl. of all taxes)
₹5,108 + ₹919 GST (18%)
MRP was MRP ₹6,810
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Standard 0.001 mm and 0.005 mm graduation dial indicators having a bezel with an outside diameter of 57 mm.
- The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.

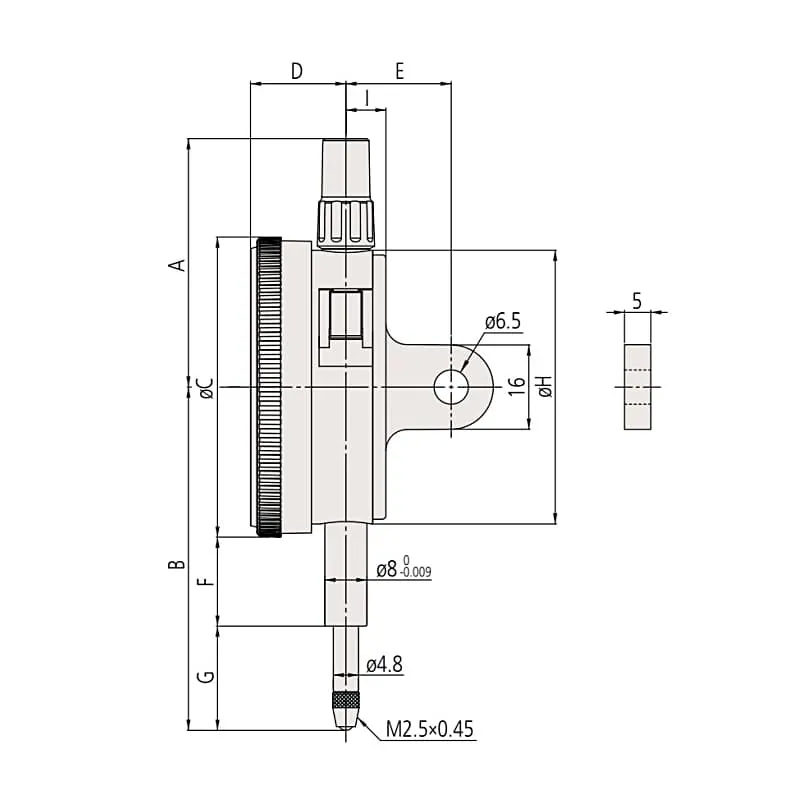

Dimension Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 1 mm |
| Rev (mm) | 0.2 mm |
| Graduation (mm) | 0.001 mm |
| MPE Indicator Error (μm) | 2μm (1/10 Rev) / 3μm (1/2 Rev) / 4μm (1 Rev) / 5μm (Measuring Range) |
| MPE Hysteresis (μm) | 2μm |
| MPE Repeatability (μm) | 0.5μm |
| Dial Reading | 0-100-0 |
| Measuring Force (N) | 1.5 or less |
