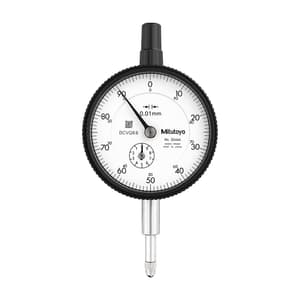

Mitutoyo 0 - 10 mm Standard Type Dial Indicator (Lug Back), 2046 A
Roll over image to zoom zoom_in
- Weight: 144 Grams
- Product Type: Dial Indicator
- Range (mm): 0 - 10 mm
- Graduation: 0.01 mm
- Stem: 8 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2135.8 (Incl. of all taxes)
₹1810+ ₹325.8 GST (18%)
1 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00039 |
|---|---|
| Product Type | Dial Indicator |
| Model No | 2046A |
| Type of Product | Dial Indicator |
| Range (mm) | 0 - 10 mm |
| Range Per Rev | 1 mm |
| Graduation | 0.01 mm |
| Scale | 0-100 (100-0) |
| MPE Any 1/10 Revolution | 5 µm |
| MPE Any 1/2 Revolution | 9 µm |
| MPE Any 1 Revolution | 10 µm |
| MPE Measuring Range | 15 µm |
| H MPE (Hysteresis) | 3 µm |
| R MPE (Repeatability) | 3 µm |
| fu | 3 µm |
| Continuous Dial | Yes |
| Coaxial Revolution Counter | Yes |
| Peak Retaining | Yes |
| Adjustable Pointer | Yes |
| Digital / Analog | Analog |
| Inch-Metric | Metric |
| Stem | 8 mm |
| Functions | ISO Type |
| Type | EN ISO Standard |
| Contact Point | Carbide Tipped, Thread: M 2.5 X 0.45 Mm |
| Delivered | With Certificate Of Inspection |
