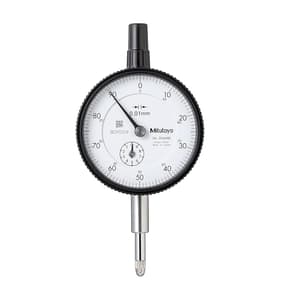

• Standard 0.01 mm graduation dial gages having a bezel with an outside diameter of 57 mm.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide contact point is used.
• The grand gear is made of stainless steel with high resistance to wear and deformation.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

Dimension Measurement (mm):

A: 47.2 mm B: 65.2 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 19.8 mm H: 52 mm I: 7.6 mm
