• Balanced Scale, Shockproof & Jeweled Bearing

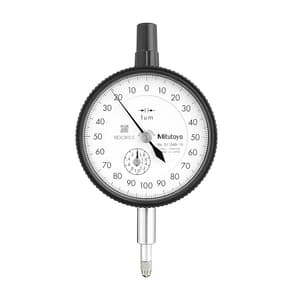

• Standard 0.001 mm and 0.005 mm graduation dial indicators having a bezel with an outside diameter of 57 mm.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide contact point is used.
• A special alloy is used for the sector gears to provide improved wear resistance.
• The indicator uses jeweled bearings, providing excellent indication sensitivity and durability.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

Dimension Measurement (mm)

A: 47.2 mm B: 61 mm C: 57 mm D: 18.1 mm E: 20 mm F: 16.9 mm G: 15.6 mm H: 52 mm I: 7.6 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
