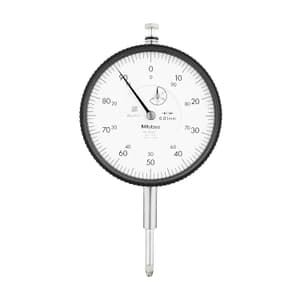

Mitutoyo 0 - 20 mm Long Stroke Dial Indicator with Lug Back, 3050A
Roll over image to zoom zoom_in
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (mm): 0 - 20 mm
- Graduation (mm): 0.01 mm
- Dial Reading: ±0-100
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10584.6 (Incl. of all taxes)
₹8970+ ₹1614.6 GST (18%)
MRP ₹11960
SAVE 25%
1 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Reverse Reading, with damper at lowest rest point
- Dial indicators with a large-diameter dial face for easy reading.
- Models with longer measuring ranges are also available.
- All types are supplied with limit markers and a bezel clamp as standard.
- The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.
- The bezel clamp and lifting lever* (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.

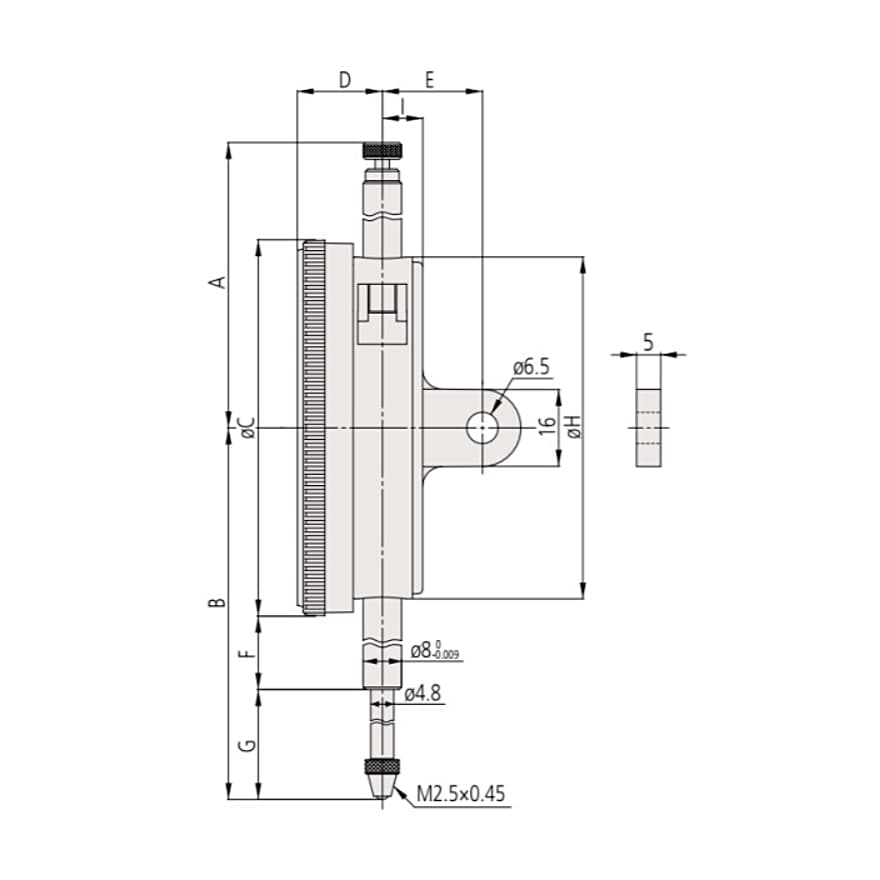

Dimension Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00516 |
|---|---|
| Product Type | Dial Indicator |
| Model No | 3050A |
| Type of Product | Dial Indicator |
| Range (mm) | 0 - 20 mm |
| Rev (mm) | 1 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indication Error (µm) | 8µm (1/10 Rev) / 10µm (1/2 Rev) / 15µm (1 Rev) / 20µm (Measuring Range) |
| MPE Hysteresis (µm) | 5 µm |
| MPE Repeatability (µm) | 4 µm |
| Dial Reading | ±0-100 |
| Measuring Force (N) | 2.0 or less |
