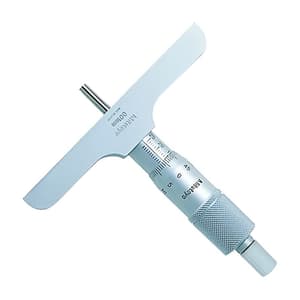

Mitutoyo 0 - 25 mm Depth Micrometer (101.6 mm Base Width), 128-102
Roll over the image to zoom in
Key Features
- Product Type: Depth Micrometer
- Weight: 250 g
- Range (mm): 0 - 25 mm
- Base (W x T): 101.6 x 16 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,027 (Incl. of all taxes)
₹5,108 + ₹919 GST (18%)
MRP was MRP ₹6,810
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Product Information
Highlights
A Mitutoyo non-digital depth micrometer. The 101 mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Ø4 mm measuring rod.
- With measuring rod clamp.
- Carbide-tipped measuring rod model is available.
- With ratchet stop for constant force.
Package Content:

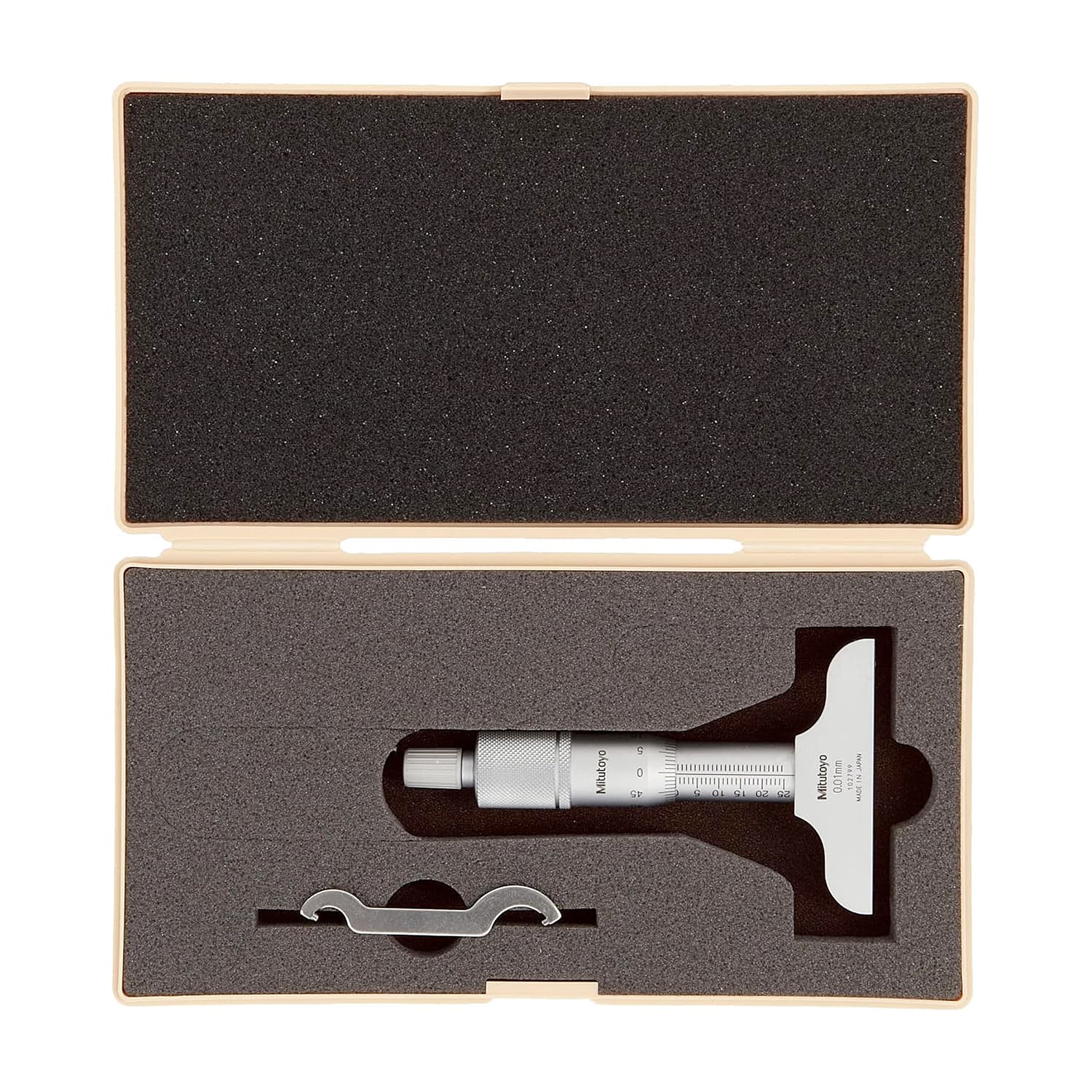

- 1x Depth Micrometer
- 1x Spanner (301336)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Base (W x T) | 101.6 x 16 mm |
| Flatness Base | 2 μm |
| Flatness Rod | 0.3 μm |
| Graduation | 0.01 mm |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Parallelism base/rod | 5 μm |
| Spindle Pitch | 0.5 mm |
| Base | Hardened Tool Steel |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble and Sleeve Satin Chrome Finish, Ø 18 mm |
