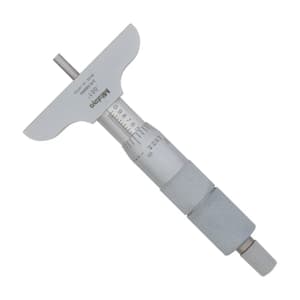

Mitutoyo 0 - 3 inch Depth Micrometer with Interchangeable Rods (2.5 inch Base Width), 129-126
Roll over image to zoom zoom_in
- Weight: 280 Grams
- Product Type: Depth Micrometer
- Range (Inches): 0 - 3 inch
- Base (W x T): 2.5 x 0.63 inch
- Number of Rods: 3 Pcs
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹7257 (Incl. of all taxes)
₹6150+ ₹1107 GST (18%)
MRP ₹8200
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The base is made from tool steel, hardened and ground with a micro-lapped reference surface.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Package Content:
- 1x Depth Micrometer
- 2x Spanner (301336, 04GAA274)
- 4x Hex-spanner (202863)

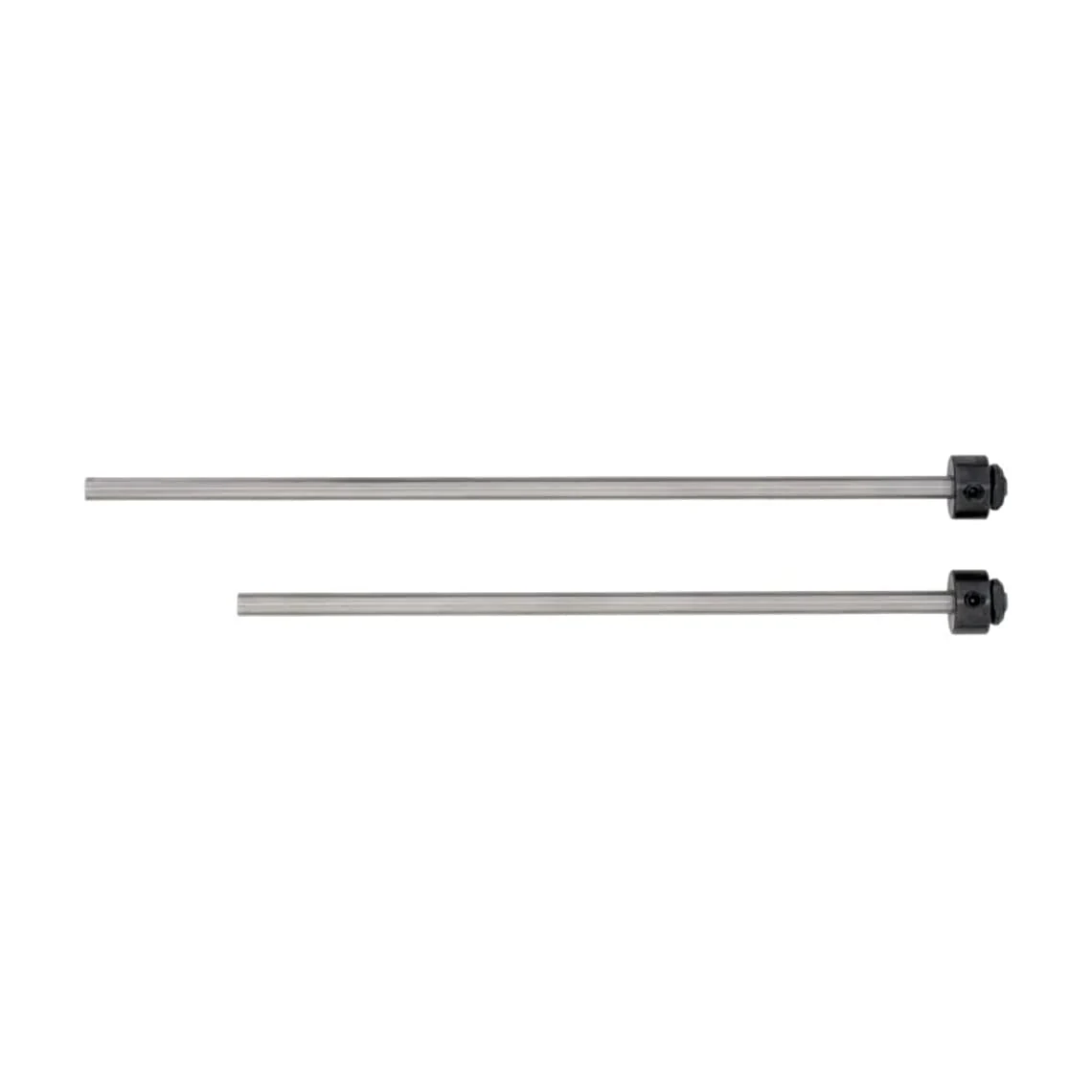

- 3x Interchangeable Rods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DE.00038 |
|---|---|
| Product Type | Depth Micrometer |
| Model No | 129-126 |
| Range (Inches) | 0 - 3 inch |
| Base (W x T) | 2.5 x 0.63 inch |
| Number of Rods | 3 Pcs |
| Graduation | 0.001 inch |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Spindle Pitch | 0.5 mm |
| Zero Point Errors of Rods | ±4µm (0 - 150 mm) / ±6µm (0 - 300 mm) |
| Parallelism Base/rod | (4+ L/50) µm L=max. measuring length (mm) |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble & Sleeve Satin Chrome Finish Ø18 mm |
