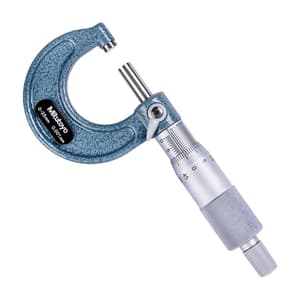

Mitutoyo 0 - 25 mm Outside Micrometer (Economy Design), 103-129
Roll over image to zoom zoom_in
- Weight: 175 Grams
- Product Type: Outside Micrometer
- Range (mm): 0 - 25 mm
- Graduation: 0.001 mm
- Flatness: 0.6 µm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2660.9 (Incl. of all taxes)
₹2255+ ₹405.9 GST (18%)
1 Business Days
1 Pcs
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
- Lightweight workshop design with baked-enamel-finished frame.
- Equipped with Ratchet Stop for constant measuring force.
- Baked-enamel-finished frame.
- Measuring faces: Carbide.

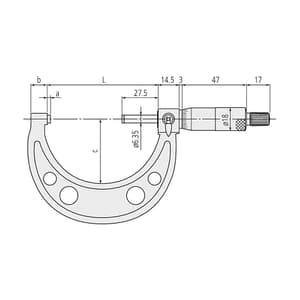

- Dimensions: L: 30.3 mm / a: 2.8 mm / b: 9 mm / c: 28 mm / d: 6.35 mm
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.OU.00107 |
|---|---|
| Product Type | Outside Micrometer |
| Model No | 103-129 |
| Type of Product | Outside Micrometers |
| Range (mm) | 0 - 25 mm |
| Graduation | 0.001 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Flatness | 0.6 µm |
| Parallelism | 2 µm |
| Digital / Analog | Analog |
| Inch-Metric | Metric |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring Force | 5 - 10 N (from 100 mm upward : 5-15 N) |
| Measuring Spindle | With spindle lock, ø6,35 mm (=300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm |

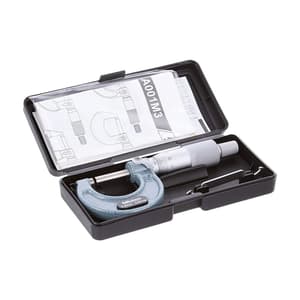

| Delivered | Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range) |
