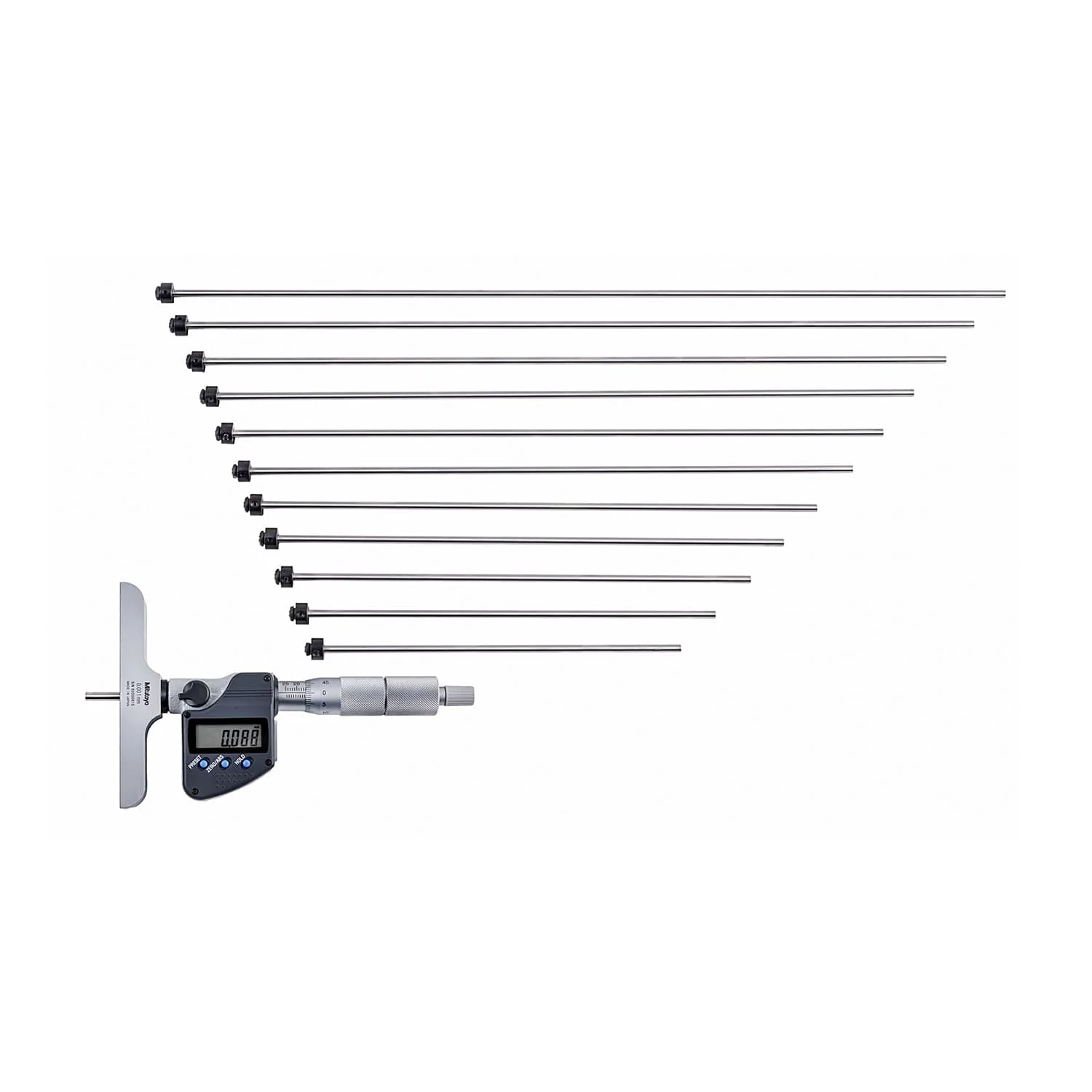

Mitutoyo 0 - 300 mm Digital Depth Micrometer with 12 Pcs Interchangeable Rods (101.6 mm Base Width), 329-251-30
Roll over image to zoom zoom_in
- Weight: 790 Grams
- Product Type: Depth Micrometer
- Range (mm): 0 - 300 mm
- Base (W x T): 101.6 x 16 mm
- Number of Rods: 12 Pcs
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹45789.9 (Incl. of all taxes)
₹38805+ ₹6984.9 GST (18%)
MRP ₹51740
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 150 mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Ø4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
- The ratchet stop provides constant measuring force.
- Measuring rod lock.

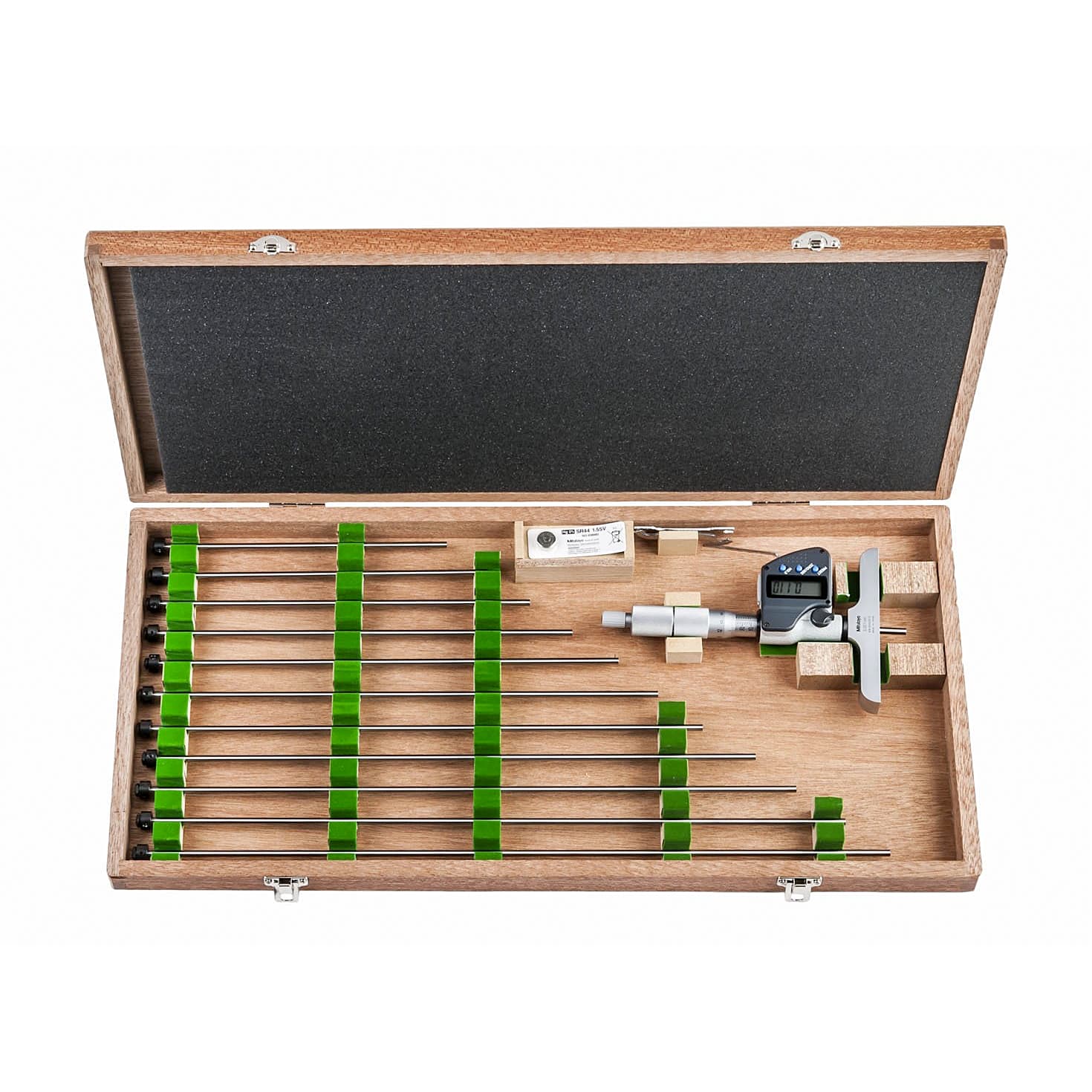

Package Content:
- 1x Depth Micrometer
- 2x Spanner (301336, 04GAA274)
- 1x Hex-spanner (202863)
- 1 SR44 battery
- 12x Interchangeable Rods
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DE.00052 |
|---|---|
| Product Type | Depth Micrometer |
| Model No | 329-251-30 |
| Range (mm) | 0 - 300 mm |
| Base (W x T) | 101.6 x 16 mm |
| Number of Rods | 12 Pcs |
| Flatness Base | 2 µm |
| Flatness Rod | 0.3 µm |
| Graduation | 0.01 mm |
| Measuring Force | 5 - 10N |
| Measuring Span | 25 |
| Parallelism base/rod | 10 µm |
| Spindle Pitch | 0.5 mm |
| Zero Point Errors of Rods | ±6µm |
| Base | Hardened Tool Steel |
| Measuring Face | Hardened, Precision Ground, Micro-lap Finish |
| Scale | Thimble and Sleeve Satin Chrome Finish, Ø 18 mm |
| Battery Life | Approx. 2,4 years |
| Power Supply | 1x Battery SR-44.0 |
