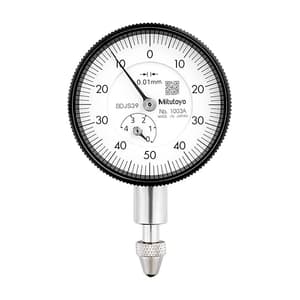

Mitutoyo 0 - 4 mm Dial Indicator with Lug Back, 1003A

Name: Mitutoyo 0 - 4 mm Dial Indicator with Lug Back, 1003A
Brand: Mitutoyo
SKU: ME.DI.DI.00343
Price: 6945 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Mitutoyo

SKU: ME.DI.DI.00343

Model: 1003A

Roll over image to zoom zoom_in

Visit Mitutoyo Store keyboard_double_arrow_right

Key Features

Weight: 61 Grams
Product Type: Dial Indicator
Range (mm): 0 - 4 mm

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹8195.1 (Incl. of all taxes)

₹6945+ ₹1250.1 GST (18%)

MRP ₹9260

SAVE 25%

Dispatch: 1 Business Days

Items in Pack: 1 Pcs

HSN Code: 90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Compact dial indicators with bezel diameters of 31 or 36 mm for restricted-space applications in gaging jigs.

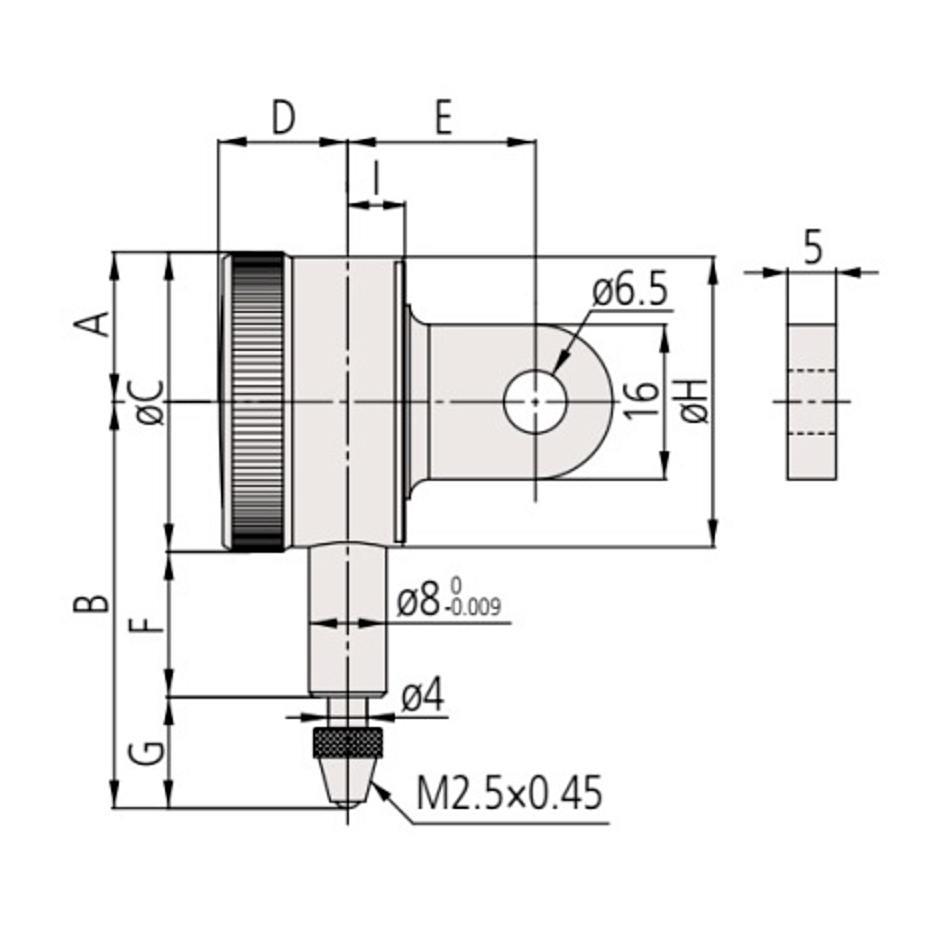

Dimension Measurement (mm):

A: 18 mm
B: 40.3 mm
C: 36 mm
D: 13.5 mm
E: 15 mm
F: 9.5 mm
G: 12.8 mm
H: 32 mm
I: 6 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKU	ME.DI.DI.00343
Product Type	Dial Indicator
Model No	1003A
Type of Product	Dial Indicator
Range (mm)	0 - 4 mm
MPE Indication Error	8µm (1/10 Rev), 10µm (1/2 Rev), 11µm (1 Rev), 13µm (Measuring Range)
MPE Hysteresis	4µm
MPE Repeatability	3µm
Dial Reading	0-50-0
Measuring Force	1.4 or less
Graduation (mm)	0.01 mm
