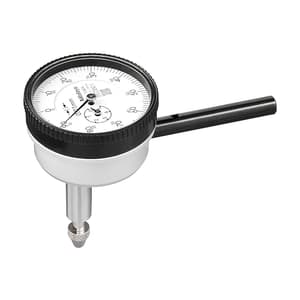

Mitutoyo 0 - 5 mm Back Plunger Type Dial Indicator, 1160A
Roll over image to zoom zoom_in
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (mm): 0 - 5 mm
- Graduation (mm): 0.01 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹7469.4 (Incl. of all taxes)
₹6330+ ₹1139.4 GST (18%)
MRP ₹8440
SAVE 25%
1 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Back Plunger type dial indicators are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in situations where standard dial indicators are difficult to read.
Features:
- Continuous Scale & Back Plunger
- Ideal for compact spaces where standard dial gauge graduations are hard to read
- Suitable for installation on machine tool leveling tables or inspection fixtures
- Features rear-positioned measuring spindles for convenient access and use

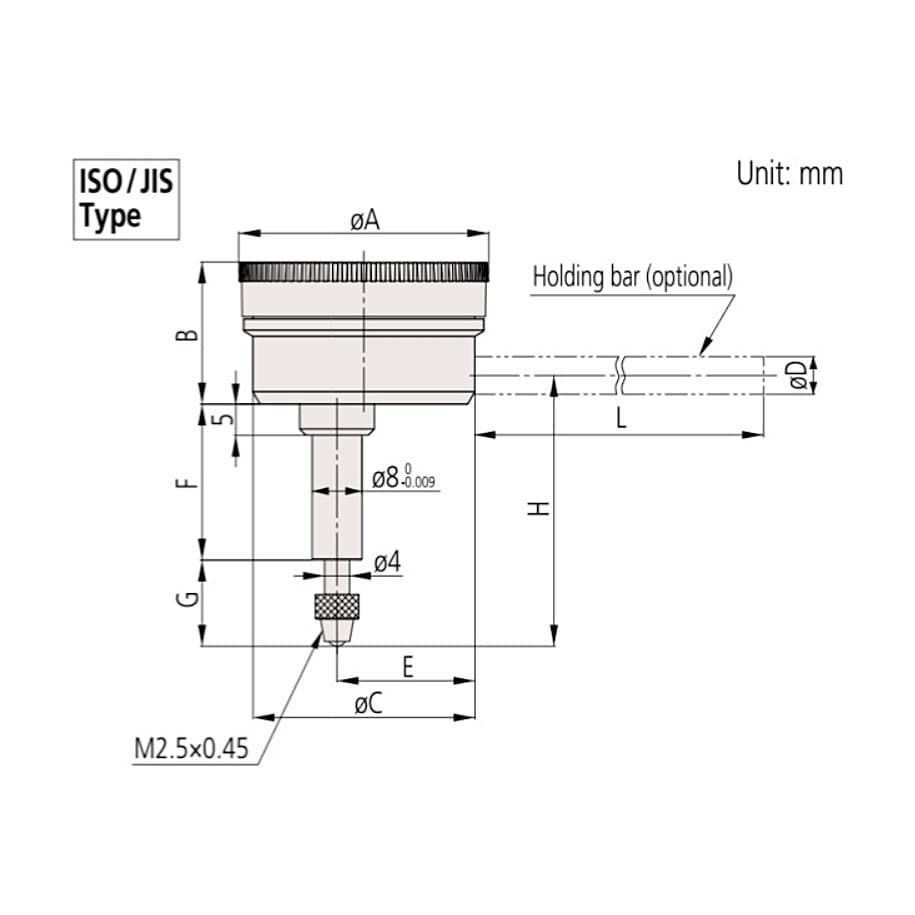

Dimension Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00368 |
|---|---|
| Product Type | Dial Indicator |
| Model No | 1160A |
| Type of Product | Dial Indicator |
| Range (mm) | 0 - 5 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indication Error | 8µm (1/10 Rev) / 12µm (1/2 Rev) / 14µm (1 Rev) / 16µm (Measuring Range) |
| MPE Hysteresis | 4µm |
| MPE Repeatability | 3µm |
| Dial Reading | ±0 - 100 |
| Measuring Force (N) | 1.4 or less |
