• Continuous Scale, Waterproof & with a damper at the top rest point.
• Water-proof type dial indicators having a bezel with an outside diameter of 57 mm.
• O-rings and rubber bellows are used to prevent water and oil penetration.
• The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide contact point is used.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

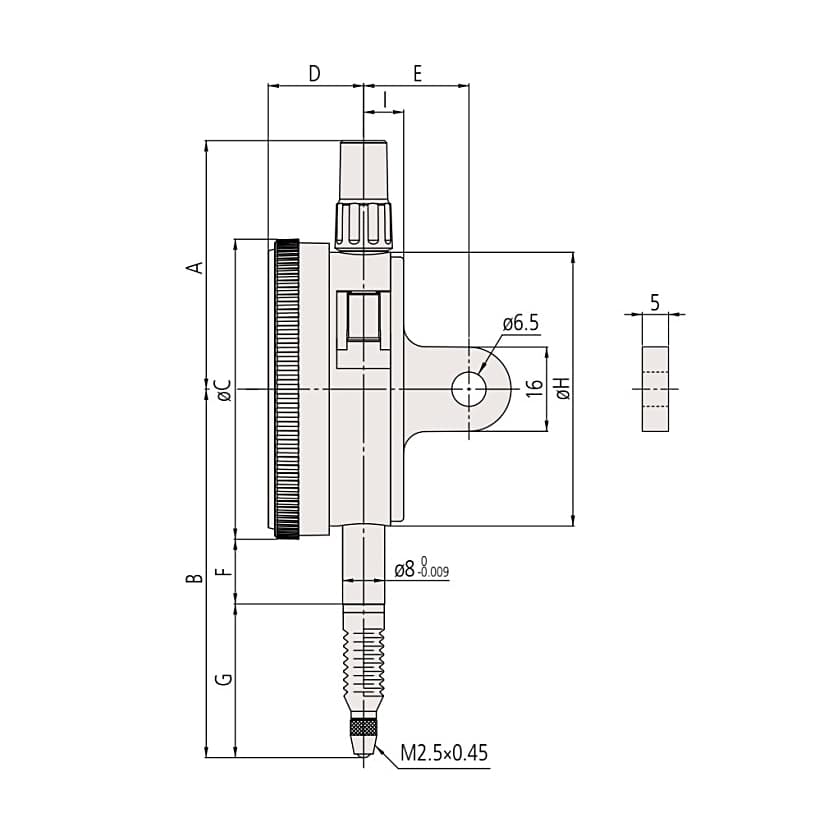

Dimension Measurement (mm):

A: 47.2 mm B: 70 mm C: 57 mm D: 18.1 mm E: 20 mm F: 12.3 mm G: 29.2 mm H: 52 mm I: 7.6 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
