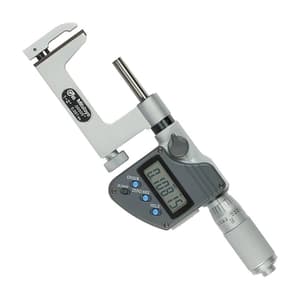

Mitutoyo 1 - 2 inch Interchangeable Anvil Type Digital Uni-mike Micrometer with Friction Thimble, 317-352-30
Roll over image to zoom zoom_in
- Weight: 365 Grams
- Product Type: Uni-mike Micrometer
- Range (Inches): 1 - 2 inch
- Digital step: 0.00005" / 0.001mm
- Accuracy: ±0.0002"
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹36709.8 (Incl. of all taxes)
₹31110+ ₹5599.8 GST (18%)
MRP ₹41480
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Measures tubing thickness, shoulder-edge distance, rivet head height, etc., with interchangeable anvils (Flat Anvil, Rod Anvil, V-anvil).

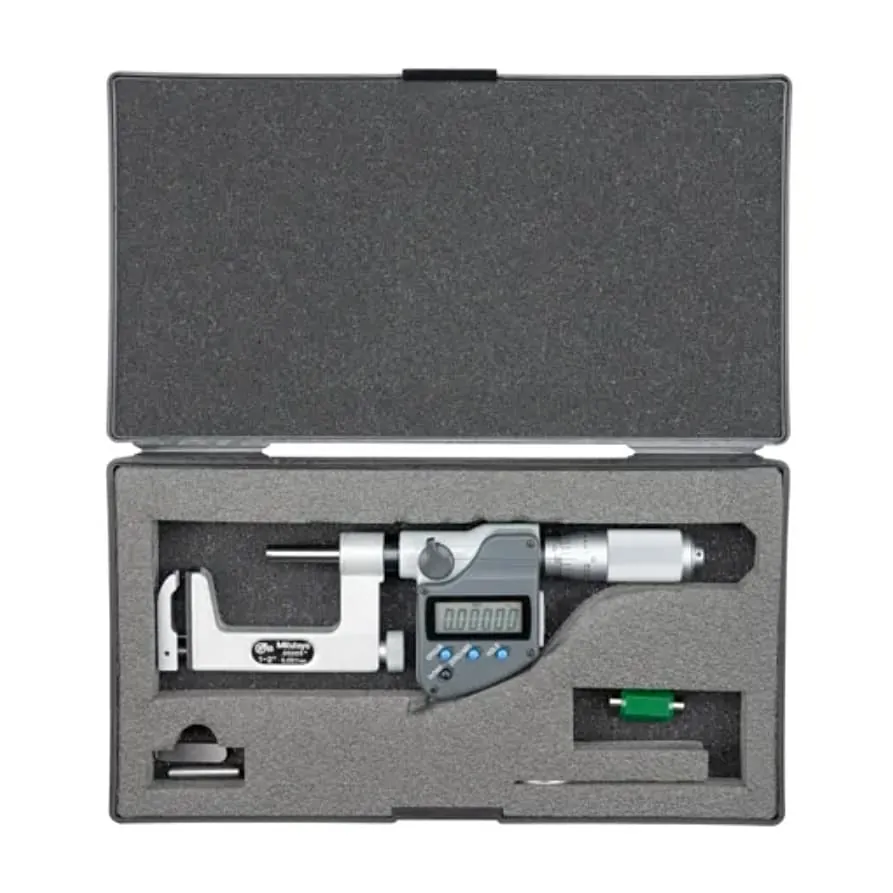

- Supplied in fitted plastic case.
- Non-slip grip finish
- With special Disk Anvils. The Uni-Mike is used as a height micrometer. The disks have a lapped, mirror surface.
Functions:
- ABS / INC (INC ZERO)
- Automatic OFF after 20 minutes of non-use
- Locking functions
- ORIGIN
- Low voltage alarm
- KEEP
Package Content:
- 1x Uni-Mike Micrometer
- 1x Spanner
- 1x Flat Anvil (201216)
- 1x Rod Anvil (201217)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.UN.00023 |
|---|---|
| Product Type | Uni-mike Micrometer |
| Model No | 317-352-30 |
| Range (Inches) | 1 - 2 inch |
| Digital step | 0.00005" / 0.001mm |
| Accuracy | ±0.0002" |
| Flatness | 0.000024" (Spindle), 0.00008" (Anvil) |
| Parallelism | 0.00012 inch |
| Spindle Feed Error | 0.00015 inch |
| Measuring Force | 5 - 10N |
| Measuring Spindle | ø6.35 mm With spindle lock, (Spindle Pitch 0.5 mm) |
| Scale | Thimble and sleeve Satin Chrome Finish ø18 mm |
| Measuring Face | Carbide-tipped Micro-lap Finish Spindle and Hardened Steel Anvil |
| IP Rating | IP65 |
| Display | LCD, Character Height 7.5 mm |
| Battery Life | Approx. 2.4 years |
| Power Supply | 1x Battery SR-44 |
