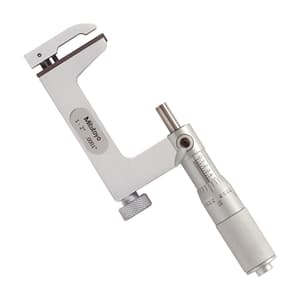

Mitutoyo 1 - 2 inch Interchangeable Anvil Type Uni-mike Micrometer with Friction Thimble, 117-108
Roll over image to zoom zoom_in
- Weight: 320 Grams
- Product Type: Uni-mike Micrometer
- Range (Inches): 1 - 2 inch
- Graduation: 0.0001 inch
- Accuracy: ±.0002 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13221.9 (Incl. of all taxes)
₹11205+ ₹2016.9 GST (18%)
MRP ₹14940
SAVE 25%
2 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

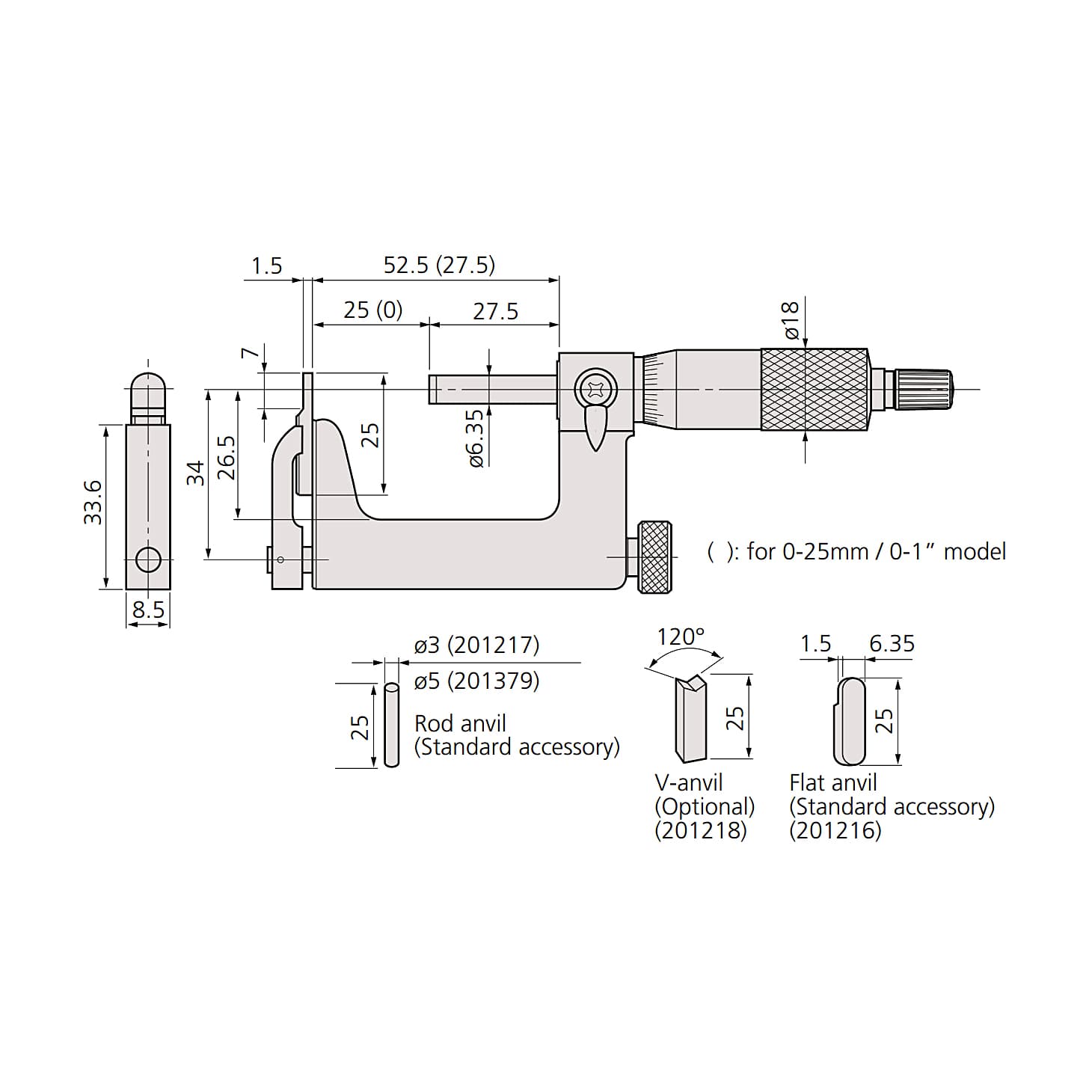

- Measures tubing thickness, shoulder-edge distance, rivet head height, etc., with interchangeable anvils (Flat Anvil, Rod Anvil, V-anvil).
- Supplied in fitted plastic case.
Package Content:
- 1x Uni-Mike Micrometer
- 1x Spanner
- 1x Flat Anvil (201216)
- 1x Rod Anvil (201217)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.UN.00014 |
|---|---|
| Product Type | Uni-mike Micrometer |
| Model No | 117-108 |
| Range (Inches) | 1 - 2 inch |
| Graduation | 0.0001 inch |
| Accuracy | ±.0002 inch |
| Flatness | 0.000024" (Spindle), 0.00008" (Anvil) |
| Spindle Feed Error | 0.00015 inch |
| Measuring Force | 5 - 10N |
| Measuring Spindle | ø6.35 mm With spindle lock, (Spindle Pitch 0.5 mm) |
| Scale | Thimble and sleeve Satin Chrome Finish ø18 mm |
| Measuring Face | Carbide-tipped Micro-lap Finish Spindle and Hardened Steel Anvil |
