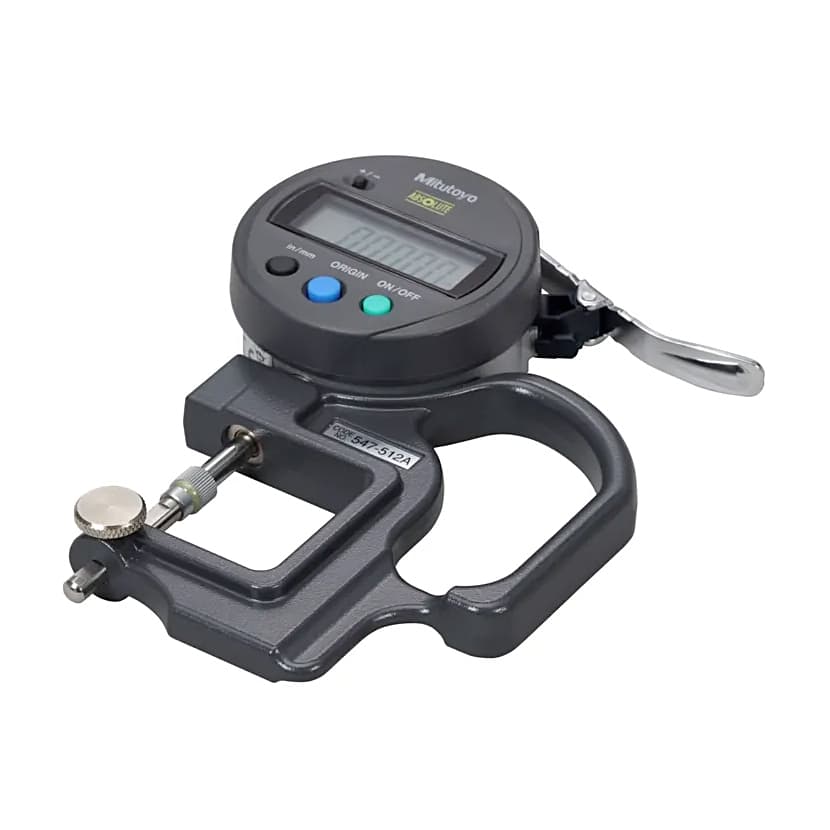

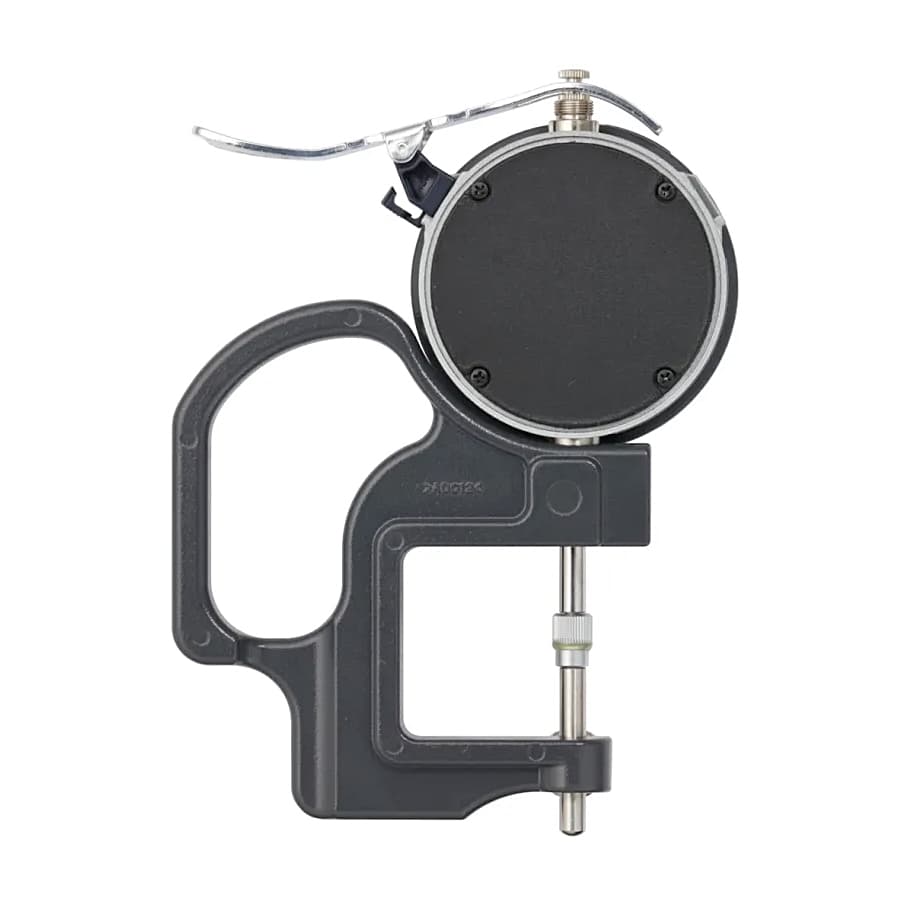

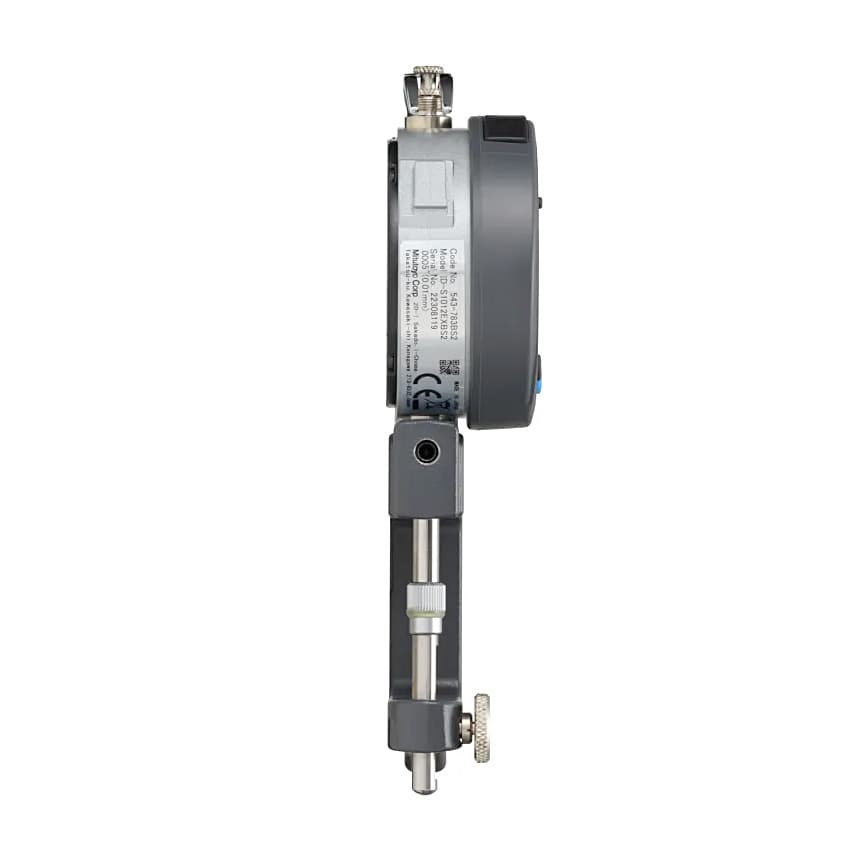

Mitutoyo 12 mm / 0.47 inch Absolute Digital Lens Thickness Gauge, 547-512A
Roll over image to zoom zoom_in
- Weight: 240 Grams
- Product Type: Thickness Gauge
- Range (mm): 0 - 12 mm
- Range (Inches): 0 - 0.47 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹23267.24 (Incl. of all taxes)
₹19718+ ₹3549.24 GST (18%)
MRP ₹26290
SAVE 25%
7 Business Days
1 Pcs
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- This ABSOLUTE Digimatic Thickness Gauge is equipped with the standard and cost effective model of a digital indicator.
- It enables you to measure film, paper, etc. with flat contact points and tube wall thickness.
- Monodirectional communication via Digimatic data output.
- Electrostatic capacitance type absolute linear encoder
Alarm:
- Low Voltage
- Setting Errors
- Sensor Error
- Display Overflow a.s.o.
Package Content:
- Digital Thickness Gauge
- SR44 battery
- spindle lifting lever (21AZB149)
- 2 Contact points for plunger
- Reversible anvil
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.TH.01857 |
|---|---|
| Product Type | Thickness Gauge |
| Model No | 547-512A |
| Type of Product | Digital Thickness Gauge |
| Range (mm) | 0 - 12 mm |
| Range (Inches) | 0 - 0.47 inch |
| Digital Scale | Electrostatic capacitance type absolute linear encoder |
| Digital Step | 0.0005 inch / 0.01 mm |
| Display | LCD, Character Height 9 mm |
| Indicator No. | ID-S No. 543-783BS (ANSI/AGD type) |
| Max. Measuring Depth | 30 mm |
| Max. Response Speed | Unlimited |
| Parallelism | 0.0005 inch / 0.01 mm |
| Protection | IP42 |
| Type | With digital indicator with 3/8" stem refer to ANSI/AGD |
| Inch/Metric switchable | Yes |
| ON/OFF | Yes |
| Power Supply | 1x Battery (SR-44) |
| Battery Life | Approx. 7000 Hours |
