Mitutoyo 125 - 150 mm Outside Micrometer with Ratchet Stop, 103-142-10
Roll over image to zoom zoom_in
- Product Type: Outside Micrometer
- Range (mm): 125 - 150 mm
- Graduation: 0.01 mm
- Flatness: 0.6 µm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹6655.2 (Incl. of all taxes)
₹5640+ ₹1015.2 GST (18%)
MRP ₹7520
SAVE 25%
2 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo basic, cost-effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Lightweight workshop design with baked-enamel-finished frame.
- Equipped with Ratchet Stop for constant measuring force.
- Baked-enamel-finished frame.
- A Mitutoyo basic, cost-effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

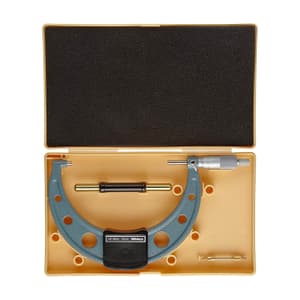

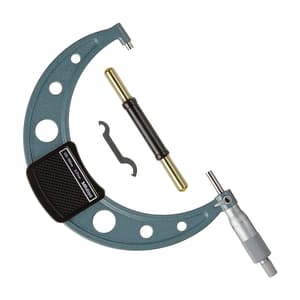

Package Content:
- 1x Outside Micrometer
- 1x Reference Bar
- 1x Spanner (301336)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.OU.00271 |
|---|---|
| Product Type | Outside Micrometer |
| Model No | 103-142-10 |
| Type of Product | Outside Micrometers |
| Range (mm) | 125 - 150 mm |
| Graduation | 0.01 mm |
| Maximum Permissible Error J MPE | ±3 µm |
| Flatness | 0.6 µm |
| Parallelism | 3 µm |
| Measuring Force | 5-10 N (from 100 mm upward : 5-15 N) |
| Dimensions (mm) | 125 mm (L)/ 18.8 mm (a)/ 94 mm (b)/ 5.7 mm (c) |
