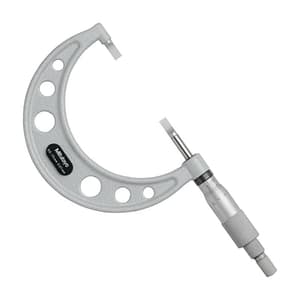

Mitutoyo 50 - 75 mm Non-rotating Spindle Type Blade Micrometer, 122-103-10
Roll over image to zoom zoom_in
- Weight: 360 Grams
- Product Type: Blade Micrometers
- Range (mm): 50 - 75 mm
- Graduation (mm): 0.01 mm
- Blade Thickness: 0.75 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13054.34 (Incl. of all taxes)
₹11063+ ₹1991.34 GST (18%)
MRP ₹14750
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways and other hard-to-reach features.
- Carbide-tipped measuring faces are available.
- Non-rotating spindle type.
- Equipped with a Ratchet Stop for constant measuring force.
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts.

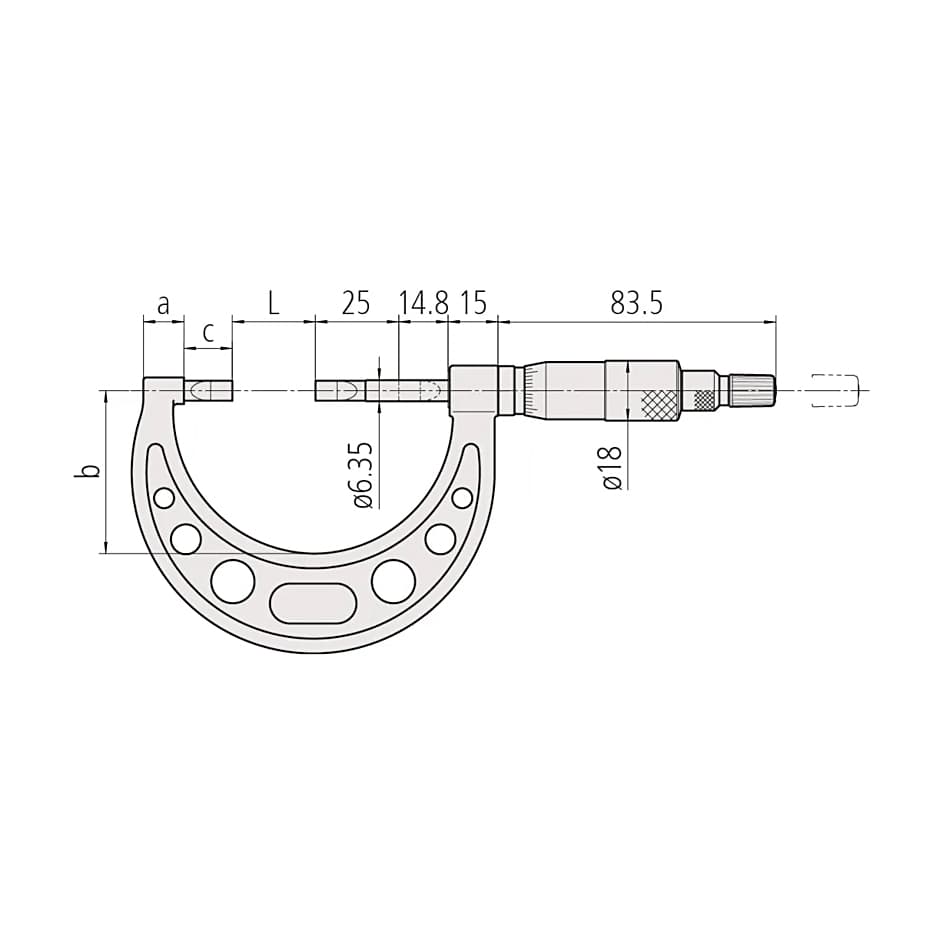

Dimensions Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.BL.00040 |
|---|---|
| Product Type | Blade Micrometers |
| Model No | 12210310 |
| Range (mm) | 50 - 75 mm |
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error JMPE (µm) | ±3 µm |
| Parallelism (µm) | 3 µm |
| Type | A |
| Measuring Force | 3 - 8 |
| Blade Thickness | 0.75 mm |
| Measuring Spindle | Ø6,35 mm (Spindle Pitch 0.5 mm) |
| Material | Hardened Steel |
