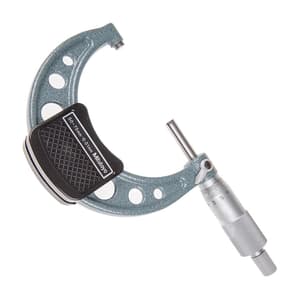

Mitutoyo 50 - 75 mm Outside Micrometer (Economy Design), 103-139-10

Shop all Mitutoyo

SKU: ME.MI.OU.00109

Model: 103-139

Roll over image to zoom zoom_in
  1. Mitutoyo 50 - 75 mm Outside Micrometer (Economy Design), 103-139-10
  2. Mitutoyo 50 - 75 mm Outside Micrometer (Economy Design), 103-139-10
  3. Mitutoyo 50 - 75 mm Outside Micrometer (Economy Design), 103-139-10
Visit Mitutoyo Store keyboard_double_arrow_right
  • Weight: 315 Grams
  • Product Type: Outside Micrometer
  • Range (mm): 50 - 75 mm
  • Graduation: 0.01 mm
  • Flatness: 0.6 µm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹3413.74 (Incl. of all taxes)

₹2893+ ₹520.74 GST (18%)

1 Business Days

1 Pcs

90173029

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

A Mitutoyo basic, cost-effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

  • Lightweight workshop design with baked-enamel-finished frame.
  • Equipped with Ratchet Stop for constant measuring force.
  • Baked-enamel-finished frame.
  • Measuring faces: Carbide.

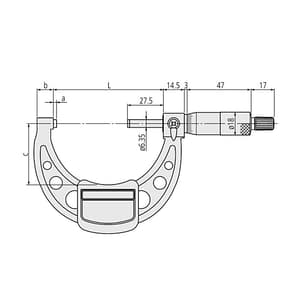

  • Dimensions: L: 80.3 mm / a: 2.8 mm / b: 12 mm / c: 46 mm / d: 6.35 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.MI.OU.00109
Product TypeOutside Micrometer
Model No103-139
Type of Product Outside Micrometers
Range (mm) 50 - 75 mm
Graduation 0.01 mm
Maximum Permissible Error J MPE ±2 µm
Flatness 0.6 µm
Parallelism 2 µm
Digital / Analog Analog
Inch-Metric Metric
Scale Thimble and sleeve satin chrome finish, ø18 mm
Measuring Force 5-10 N (from 100 mm upward : 5-15 N)
Measuring Spindle With spindle lock, ø6,35 mm (=300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm

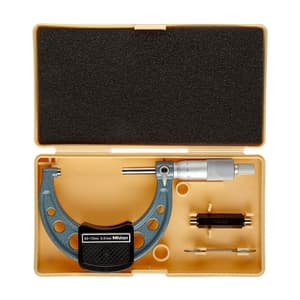

Delivered Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
