Orion Metric Thread M3 x 0.5 Pitch HSS Hand Taps (Set of 3 Pcs), 13013030
Roll over image to zoom zoom_in
- Weight: 0.02 Kg
- Product Type: Hand Taps
- Diameter (mm): 3.00 mm
- Thread: Metric
- Material: High Speed Steel
- Pitch: 0.5 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹713.9 (Incl. of all taxes)
₹605+ ₹108.9 GST (18%)
MRP ₹2418
SAVE 75%
5 Business Days
3 Pcs
82079090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Application : For manually tapping metric threads in through holes and blind holes in the steel, NF metal and (cast) material groups up to a strength of 1000 N/mm² in single part production.

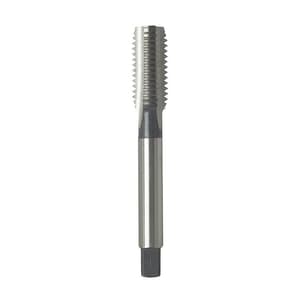

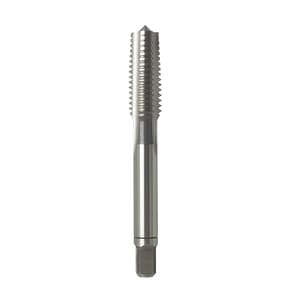

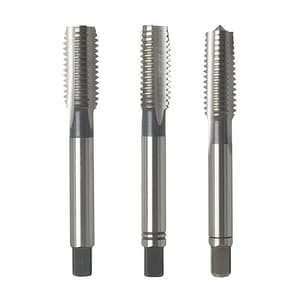

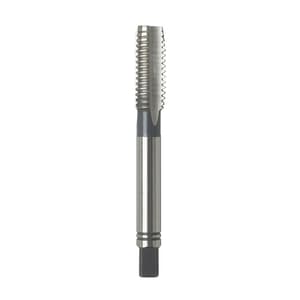

- Execution : Set consisting of taper tap (form A), second tap (form D) and third tap (form C)
- Advantage : Standard geometry with a very good price-performance ratio
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | CU.TA.HA.00659 |
|---|---|
| Product Type | Hand Taps |
| Model No | 13013030 |
| Diameter (mm) | 3.00 mm |
| Thread | Metric |
| Material | High Speed Steel |
| Thread Type x Nominal Diameter | M3 |
| Cutting Speed (Steel 1000) Suitability | 1 |
| Cutting Speed (Steel 1300) Suitability | 3 |
| Overall Stainless Steel Suitability | 3 |
| Fitness Not Iron Total | 1 |
| Cutting Speed (Cast) Suitability | 2 |
| Fitness Titan / Nickel / Super Total | 3 |
| Fitness Stainless Steel Total | 3 |
| Grade | DIN 352 |
| Pitch | 0.5 mm |
| Shank Square | 2.7 mm |
| Length | 40 mm |
| Shaft Diameter | 2.8 mm |
| Tolerance Of Screw Taps | ISO 2 (6H) |
| Hole Type | Clearance / Blind Hole = 3xD |
