Functions as data logger, and multimeter with data logging function, and dual-channel 25MHz arbitrary waveform generator, furthermore, battery pack supported

Features:

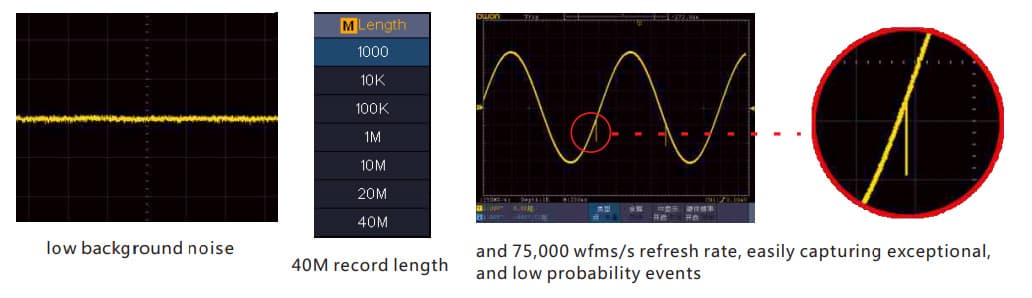

• Low background noise, vertical sensitivity in 1 mV/div - 10 V/div
• Multi- trigger, and bus decoding function
• SCPI, and LabVIEW supported

Application:

• Electronic circuit debugging
• Circuit testing
• Design and Manufacture
• Education and Training
• Automobile maintenance and testing

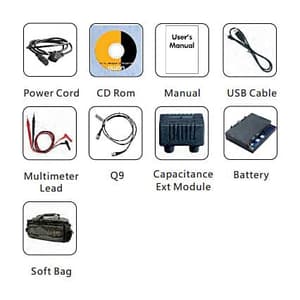

What's Included In This Package:

• Power Cord
• CD Room
• Manual
• USB Cable
• Multimeter
• Q9
• Capacitance Ext Module
• Battery
• Soft Bag

Creative New Look:

• Ultra-thin body-design, less space accommodation

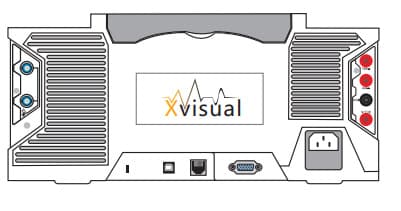

• Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
• VGA port - better solution for video expansion, and teaching demonstration
• 8 inch 800 x 600 high resolution LCD
• Optional multi-point touch screen, more user-friendly operation experience

Specification:

Interval (T) Accuracy (full bandwidth)			Single : ±(1 interval time + 1ppm x reading + 0.6ns); A verage > 16 : ±(1 interval time + 1ppm x reading + 0.4ns
Input Coupling			DC, AC, and GND
Vertical Sensitivity			1mV/div - 10V/div (at input)

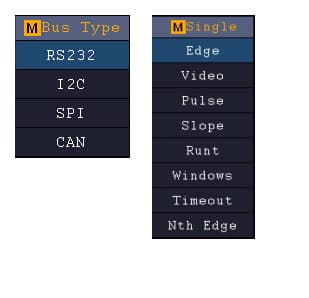

Trigger Type			Edge, Video, Pulse, Slope, Runt, Windows, T imeout, Nth Edge, Logic, I C, SPI, RS232, and CAN
Bus Decoding*			I2C, SPI, RS232, and CAN
Trigger Mode			Auto, Normal, and Single
Line / Field Frequency (video)			NTSC, PAL, and SECAM standard
Cursor Measurement			?V, and ?T between cursors, ?V and ?T between cursors, and auto- cursors
Automatic Measurement			Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B , Delay A→B , +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math			+, -, *, /, FFT
Waveform Storage			100 group
Bandwidth			full bandwidth
Phase Difference			±3 degrees

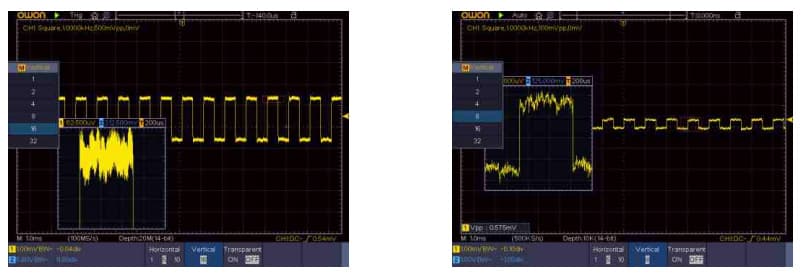

XDS series introduce 12 bits hardware ADC, the precision is 16 times against other oscilloscope on market. Equipping with OWON's original magnifier function, it can observe the signal low down to 31.25μV/div.

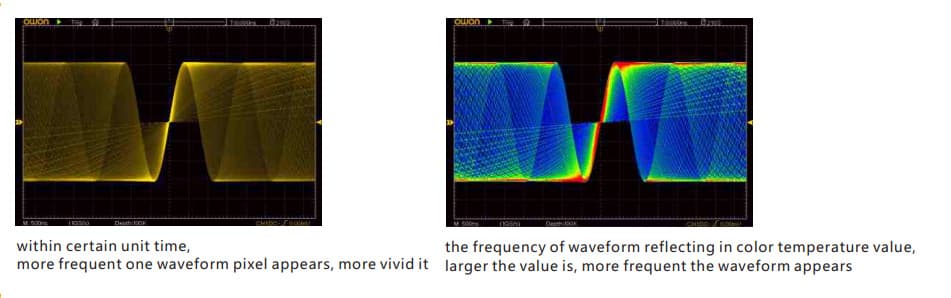

Xvisual platform - restore the waveform detail fully.

Multi-trigger supported - Logic, Time-out, I C, SPI, RS232, Runt, Windows, Nth Edge, and CAN.

Serial bus coding available in I2C, SPI, RS232, and CAN.

Built-in multimeter module, with auto-scale, and data logging function Built-in dual-channel 25MHz arbitrary waveform generator module, with sample rate of 125MS/s.

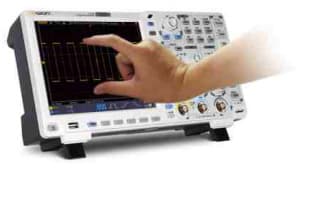

Its multi-point touchscreen improves operation efficiency considerably.

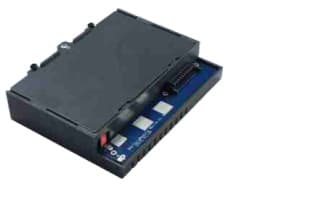

Optional battery makes floating measurements possible, advancing the operation convenience.
