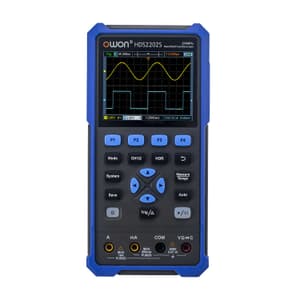

Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S

Shop all OWON

SKU: ME.EL.OS.00070

Model: HDS2202S

Roll over image to zoom zoom_in
  1. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  2. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  3. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  4. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  5. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  6. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
  7. Owon 200MHz / 1GSa/s Dual Channel Digital Handheld Oscilloscope with Multimeter, HDS 2202S
Video
Visit OWON Store keyboard_double_arrow_right
  • Product Type: Oscilloscopes
  • Bandwidth: 200 MHz
  • No. of Channels: Dual Channel
  • Sample Rate: 1GSa/s
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹29705.32 (Incl. of all taxes)

₹25174+ ₹4531.32 GST (18%)

MRP ₹30700

SAVE 18%

5 Business Days

1 Set

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

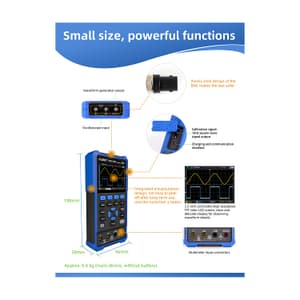

Highlights

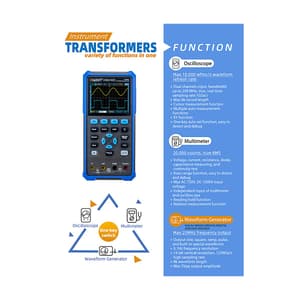

  • Oscilloscope + multimeter + waveform generator, multifunction in one
  • 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use

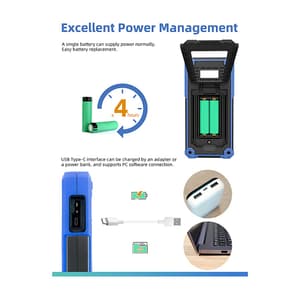

  • 18650 lithium battery, can work continuously for 3-6 hours
  • USB Type-C interface, support power bank, support PC software connection
  • Self-calibration function
  • SCPI supported, facilitate secondary development


Technical Data:

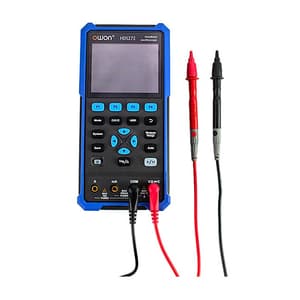

Multimeter
Max. Resolution20000 counts
Testing ModeVoltage, Current, Resistance, Capacitance, Diode and Continuity test
Input Impedance10M Ohm
Max Input VoltageAC 750V, DC 1000V
Max Input CurrentDC : 10A AC : 10A
Diode0 - 2V
Waveform Generator
Frequency OutputSine: 0.1Hz - 25MHz
Square: 0.1Hz - 5MHz
Ramp: 0.1Hz - 1MHz
Pulse: 0.1Hz - 5MHz
Arbitrary: 0.1Hz - 5MHz
Sampling Rate125MSa/s
Channel1-CH
Amplitude Range (high impedance)20 mVpp - 5 Vpp
Waveform Length8K
Vertical Resolution14bits
Output Impedance50 Ohm


What's Included In This Package:

  • 1x Digital Oscilloscope
  • Quick Guide
  • USB Cable
  • Probe Adjust
  • Multimeter Leads
  • Soft Bag
  • Probe
  • BNC to Alligator Clip

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.OS.00070
Product TypeOscilloscopes
Model NoHDS2202S
Bandwidth 200 MHz
No. of Channels Dual Channel
Sample Rate 1GSa/s

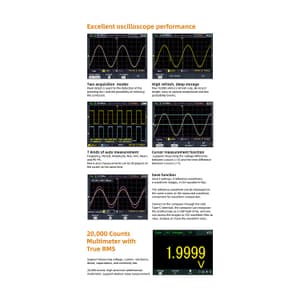

Acquisition Model Normal, Peak detect
Record Length 8K
Display 3.5-inch LCD
Waveform Refresh Rate 10,000 wfrms/s
Input Coupling DC, AC & Ground
Input Impedance 1 M Ohm±2%, in parallel with 16pF±10pF
Probe Attenuation Factors 1X, 10X, 100X, 1000X & 10000X
Max. input Voltage 400V (DC+AC, PK-PK, 1M Ohm input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical) 20 MHz
Horizontal Scale 2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity 10mV/div - 10V/div
Vertical Resolution 8 Bits
Trigger Type Edge
Trigger Modes Auto, Normal, single
Automatic Measurement Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurement V, T, T & V between cursors
Communication Interface USB Type-C
