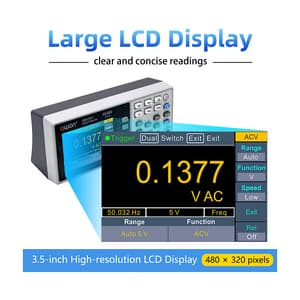

• 3.5-inch (480x320)  high-resolution LCD, providing a clear display
• Display max 55000 counts (4-4/5 digits), DC voltage accuracy up to 0.05%
• Reading rates Up to 60 readings per second
• True RMS AC voltage / current measurement
• Dual line display supported

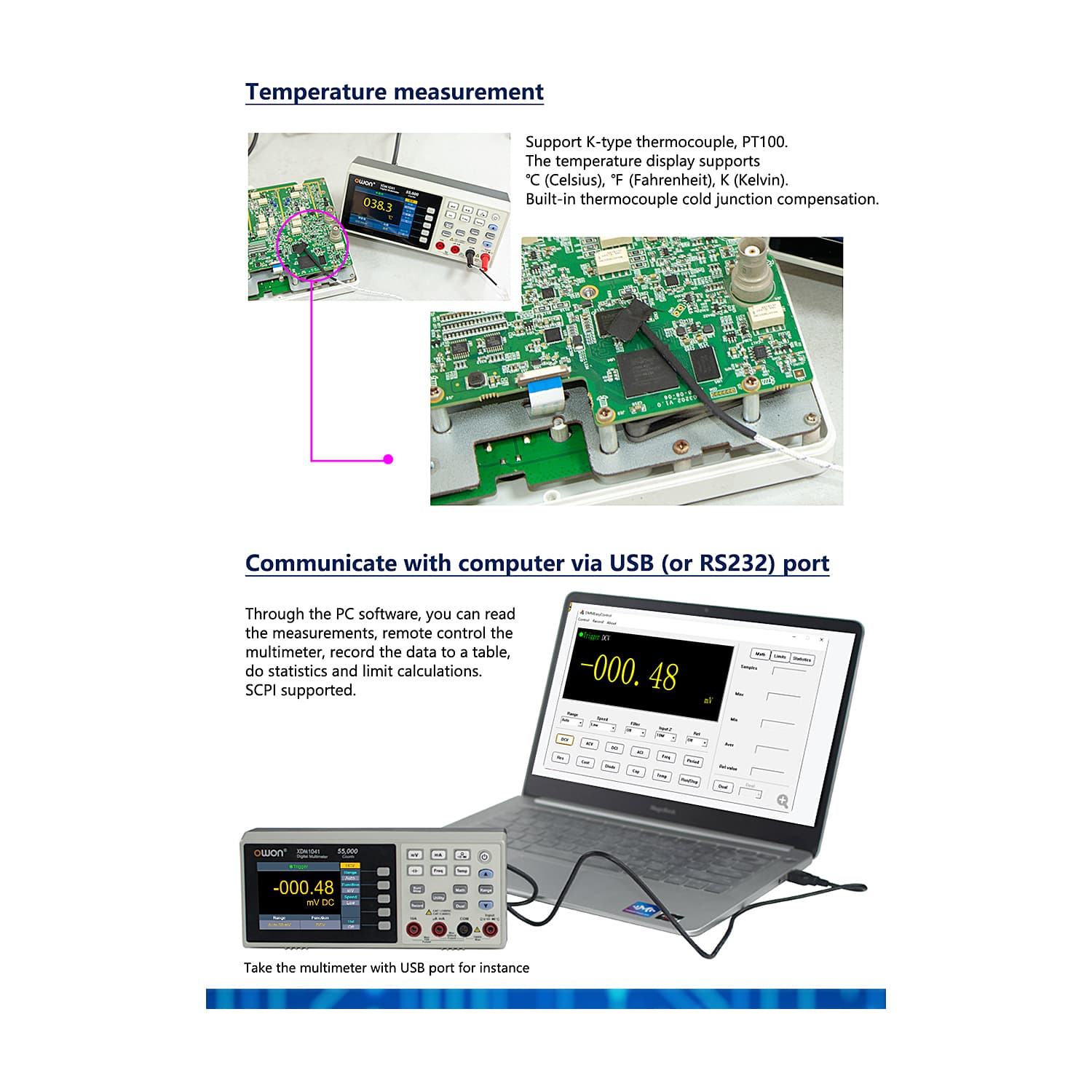

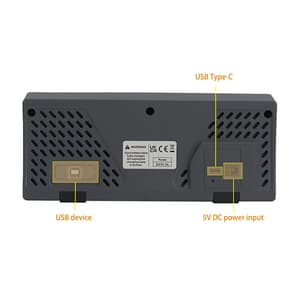

• SCPI supported, remote control the multimeter through PC software via USB port

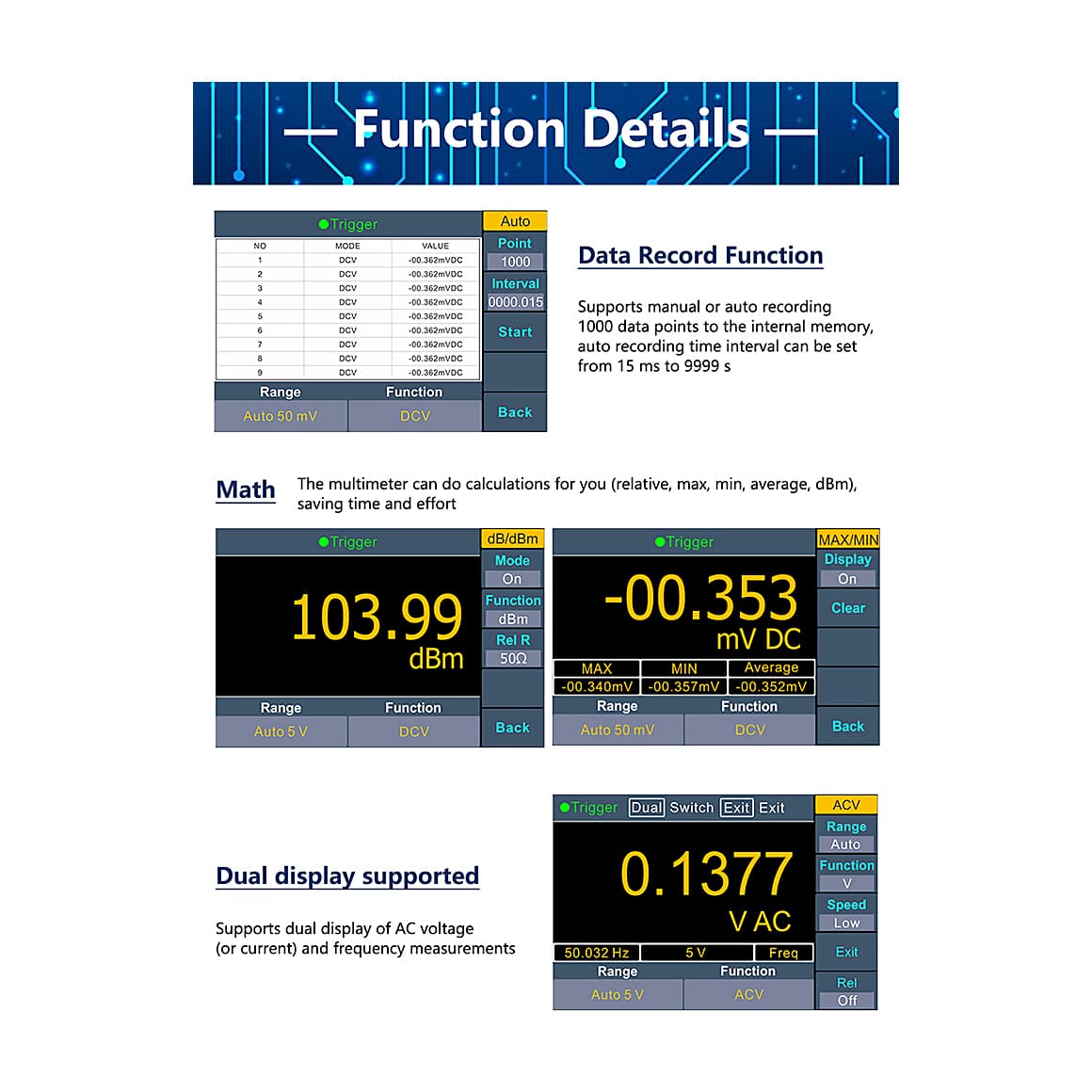

• Data record function, you can record the measured data into internal memory and then read and process the recorded data with your computer
• Lithium battery, suitable for different application scenarios
• Multiple measurement functions: DC/AC Voltage, DC/AC Current, resistance, capacitance measurement, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, MAX/MlN/average measurement, relative measurement (REL_%)
• AC True RMS measurement, measurement bandwidth: 20 Hz - 1kHz
• Manual or auto record the measured data into internal memory, and displayed in table

Technical Data:

	Measurement Range	Resolution	Accuracy ±(% of reading +LBS)
DC Voltage	50.000mV	0.001mV	0.1%+10
	500.00mV	0.01mV	0.05%+5
	5.0000V	0.0001V	0.05%+5
	50.000V	0.001V	0.05%+5
	500.00V	0.01V	0.1%+5
	1000.0V	0.1V	0.1%+10
AC Voltage	500mv - 750v	20Hz - 45Hz	1% + 30
		45Hz - 65Hz	0.5% + 30
		65Hz - 1KHz	0.7% + 30
DC Current	500uA	0.01uA	0.15%+20
	5000uA	0.1uA	0.15%+10
	50mA	0.001mA	0.15%+20
	500mA	0.01mA	0.15%+10
	5A	0.0001A	0.5%+10
	10A	0.001A	0.5%+10
AC Current	500uA - 500mA	20Hz - 1KHz	0.5%+20
	5A - 10A		1.5%+20
Resistance	500Ω	0.01Ω	0.15%+10
	5KΩ	0.0001KΩ	0.15%+5
	50KΩ	0.001KΩ	0.15%+5
	500KΩ	0.01KΩ	0.15%+5
	5MΩ	0.0001MΩ	0.3%+5
	50MΩ	0.001MΩ	1%+10
Frequency	10.000Hz–60MHz	-	±(0.2%+10)
Capacitance	50nF-500uF	-	2.5%+10
	5mF-50mF		5%+10
Diode	3.0000 V	0.0001V	-
Continuity	1000 Ω	0.1Ω	Adjustable threshold

Package Content:

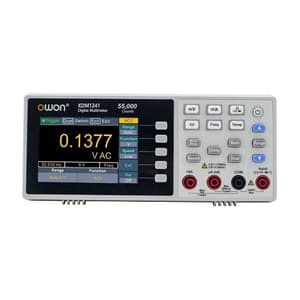

• 1x TRMS Bench-type Digital Multimeter
• Quick Guide
• USB Cable
• Multimeter Leads
• Alligator Clip
• USB to DC Cord
