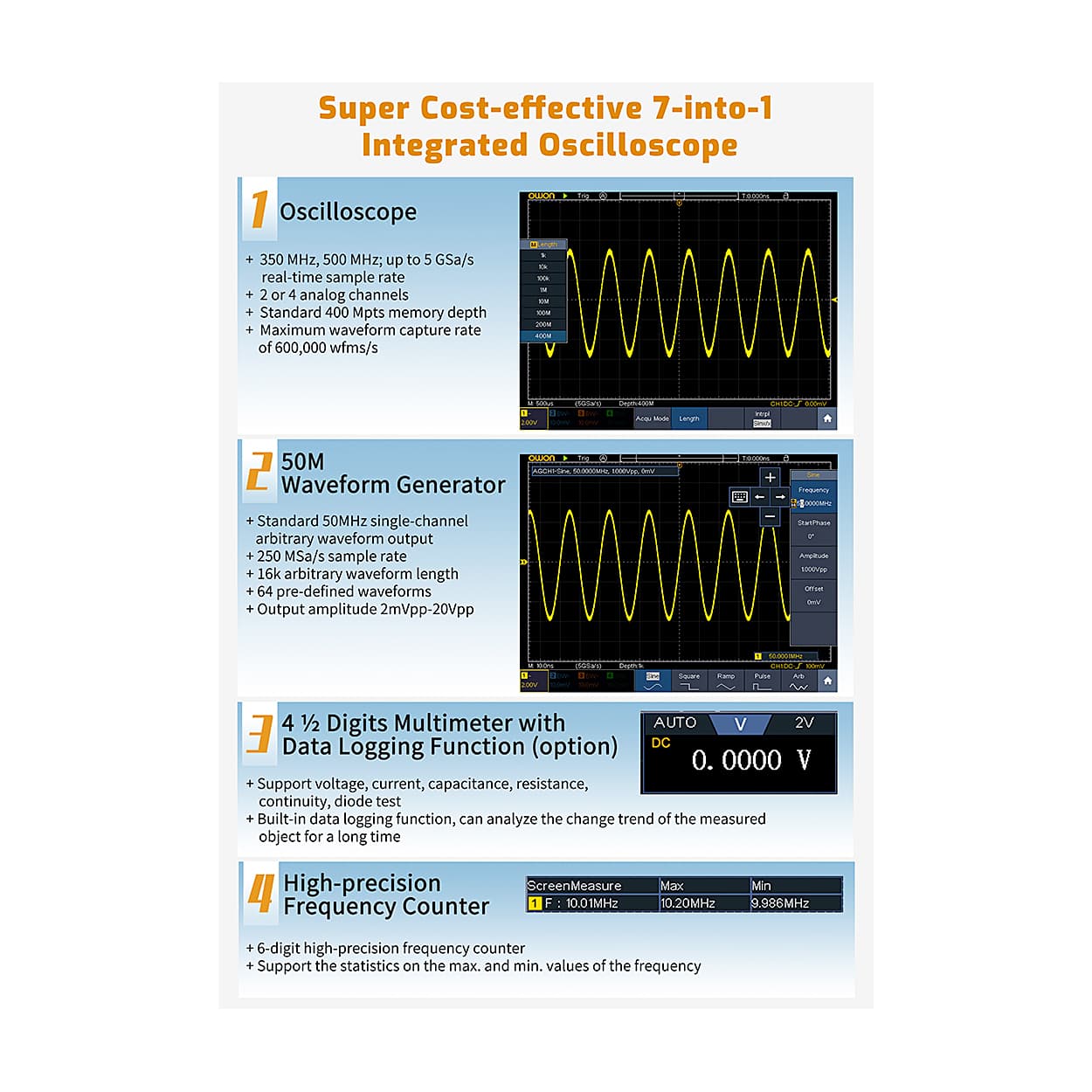

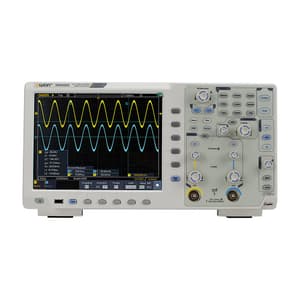

• Including 7 measurement functions in one: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency counter, protocol analysis, amplitude-frequency curve analysis
• 350 MHz / 500 MHz oscilloscope bandwidth, 5 GSa/s sample rate
• Standard 400MB memory depth
• 600,000 wfms/s refresh rate, easy to capture exceptional and low probability events
• Advanced function calculation function
• Standard 50M single-channel arbitrary waveform generator
• The oscilloscope captures the waveform, the waveform generator generates the waveform, help engineers to further analyze the circuit
• Waveform cloning function, quickly generate captured waveforms

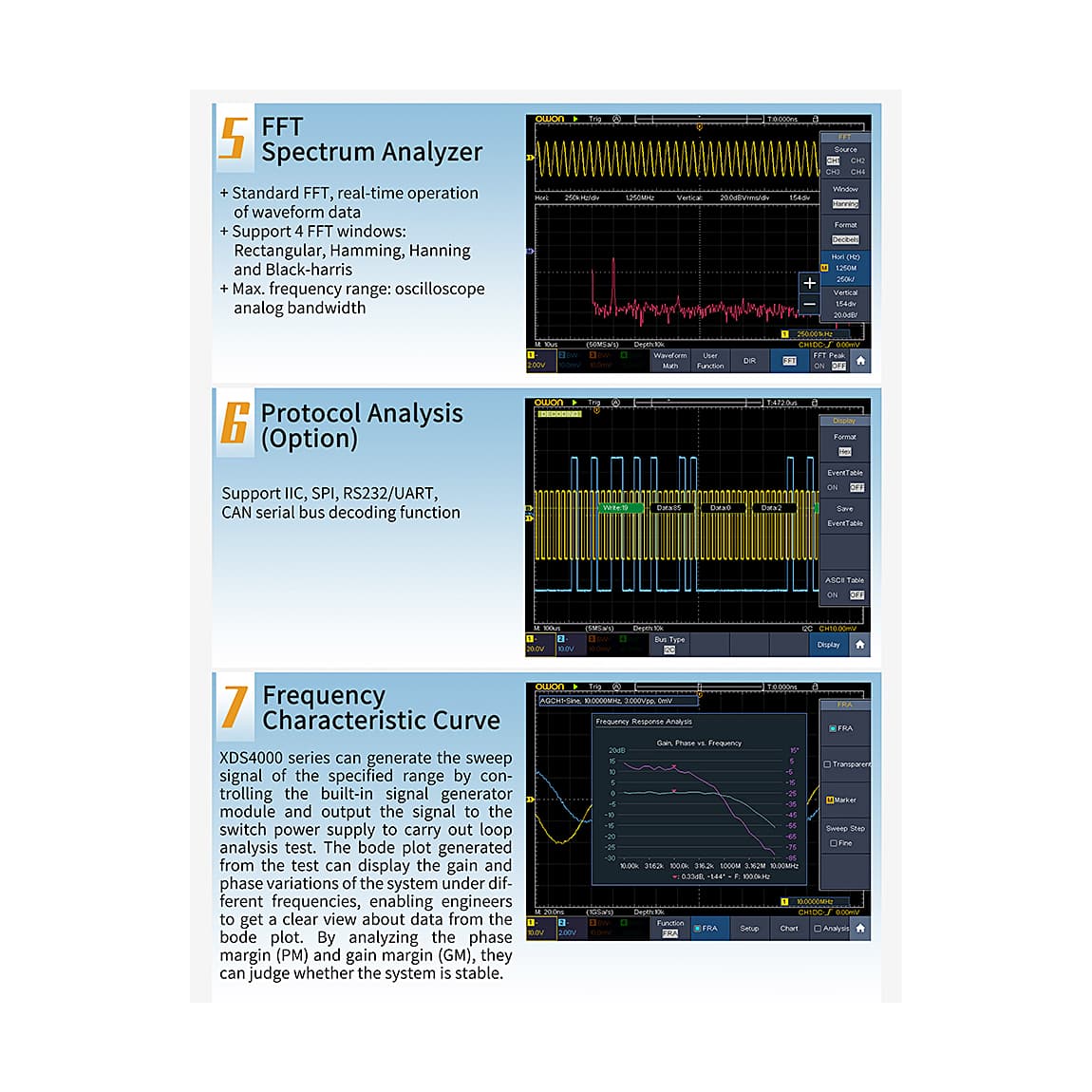

• A variety of triggers and bus decodes
• Optional multimeter and multimeter data logger function
• Standard Bode plot for loop test analysis

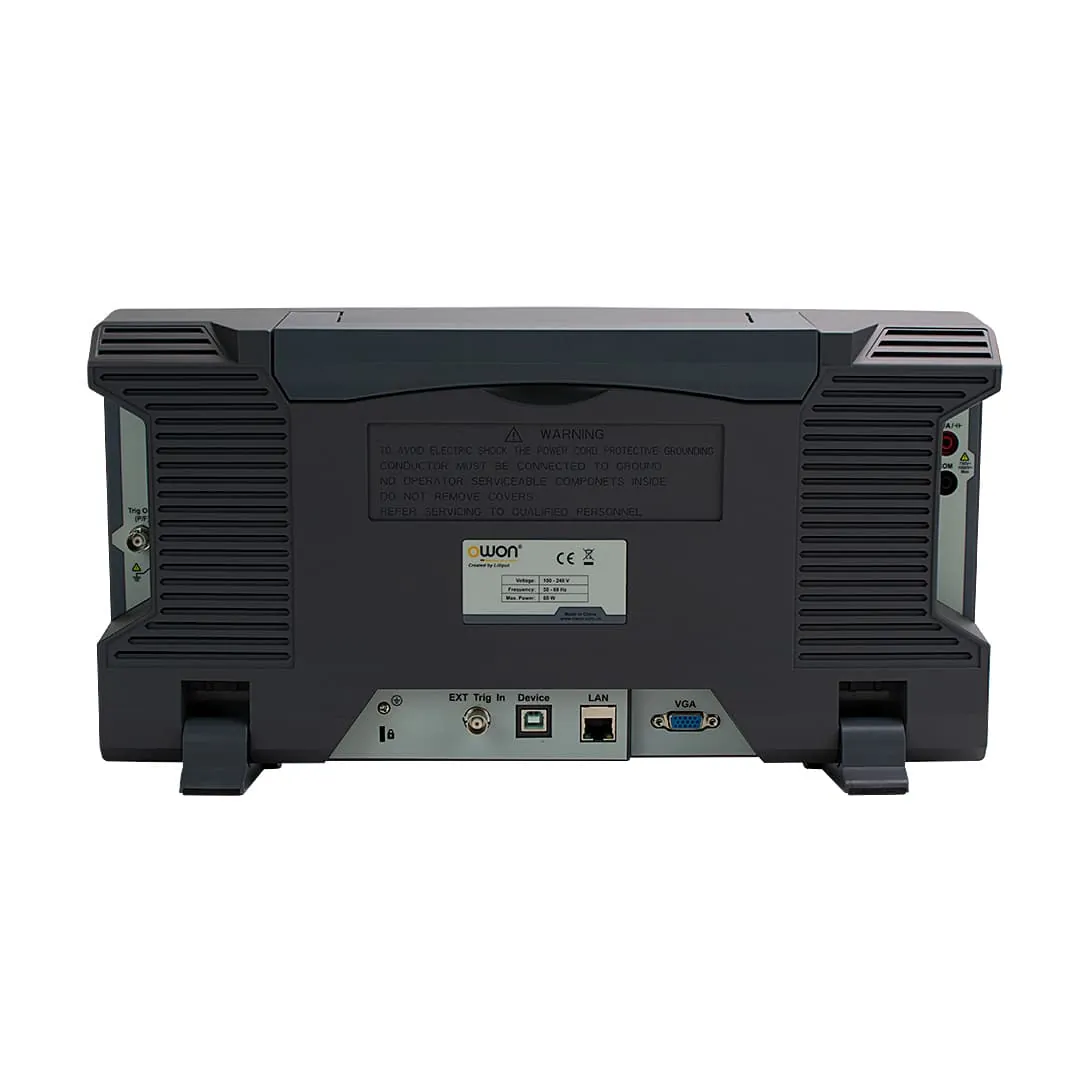

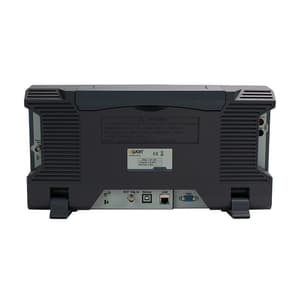

• Multi-interface design: USB Host & Device, LAN, VGA; USB Host supports standard SCPI

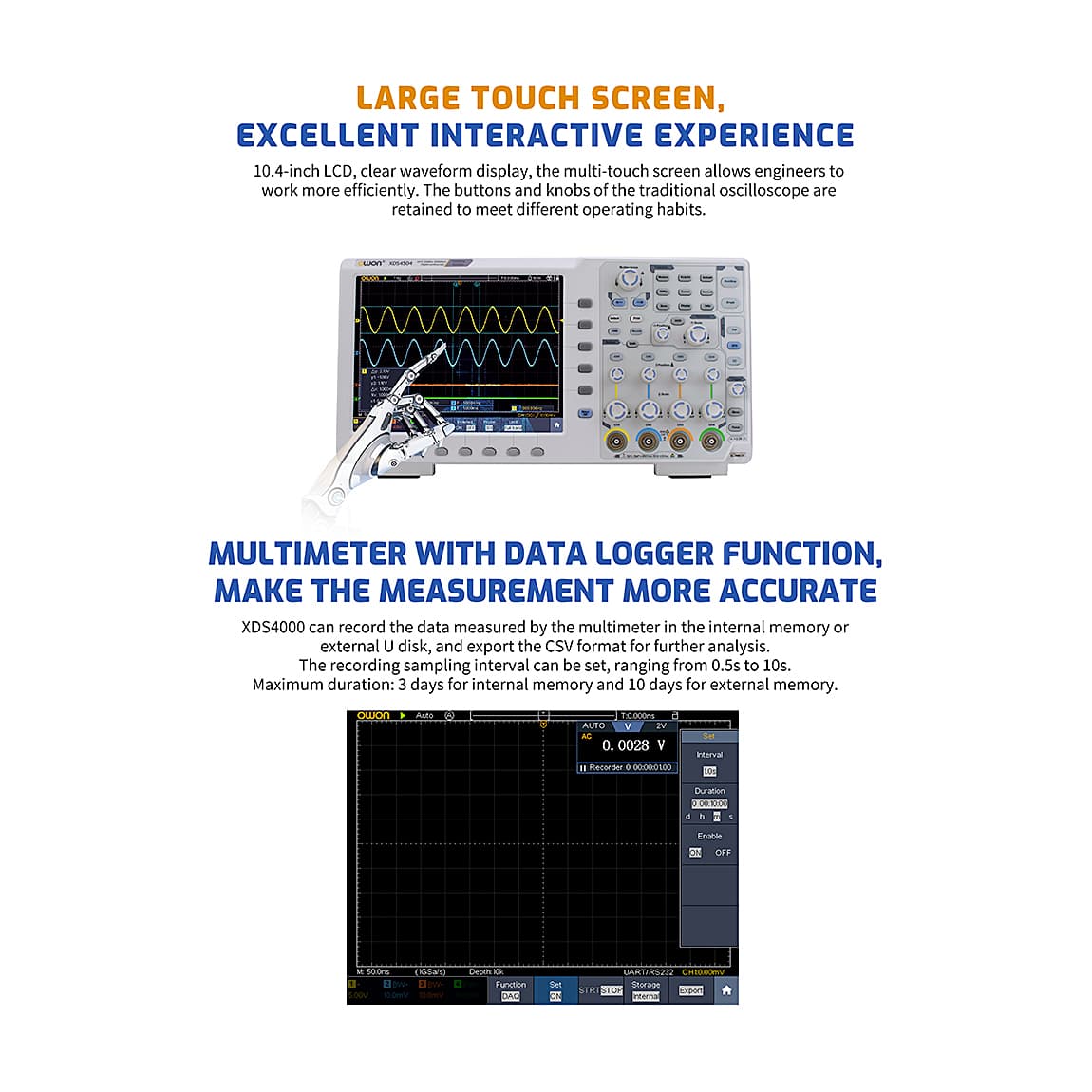

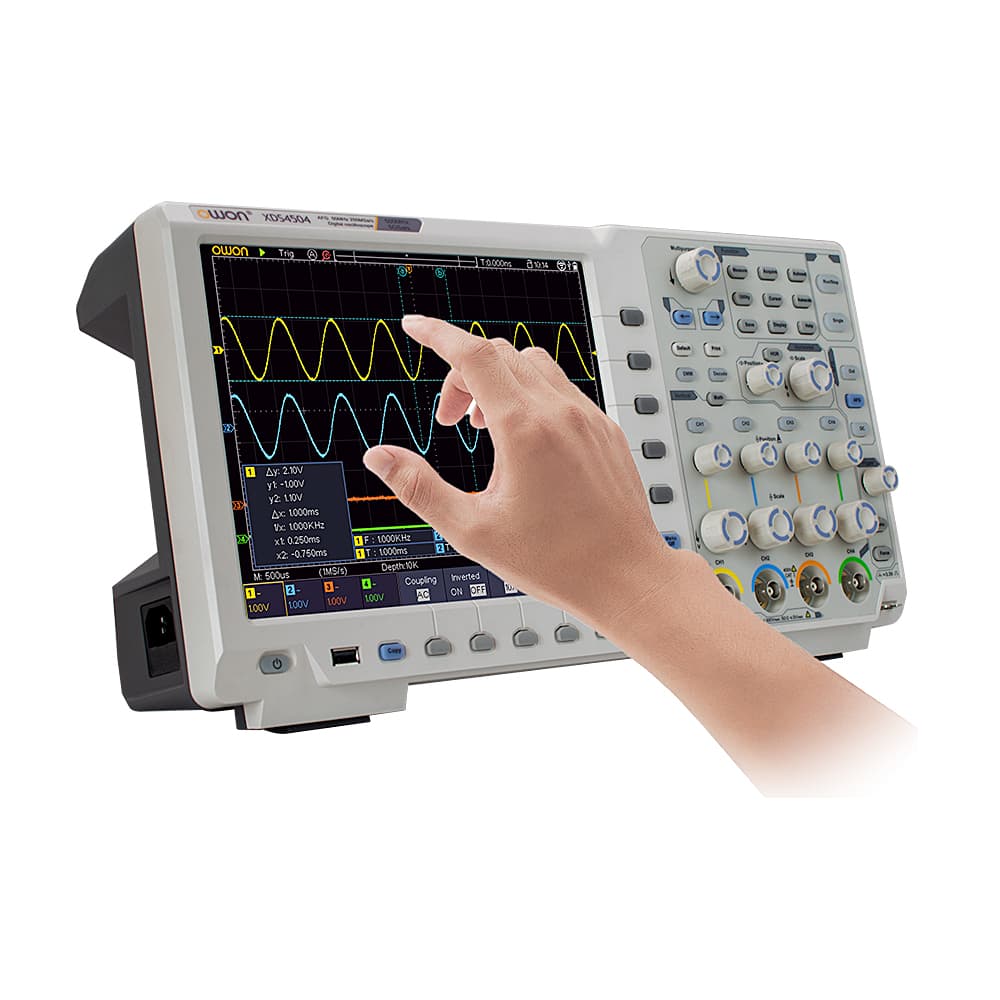

• 10.4-inch multi-touch screen
• Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.
• Waveform math: +, -, *, /, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)

Technical Data for Arb Waveform Generator:

• Max Frequency Output: 50MHz
• Sample Rate: 250MS/s
• 1 Channel
• Vertical Resolution: 14bits
• Amplitude Range: 2mVpp - 5Vpp (?50MHz); 2mVpp - 20Vpp (?25MHz)
• Waveform Length: 16K
• Output Waveforms: Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise,and others, total 64 built-in waveforms, and user-defined arbitrary waveform

Package Content:

• 1x Digital Oscilloscope
• Power Cord
• CD Rom
• Quick Guide
• USB Cable
• Probe
• Probe Adjust
• Current Extension Module
• Multimeter Leads (optional)
• Q9 Cable



Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
