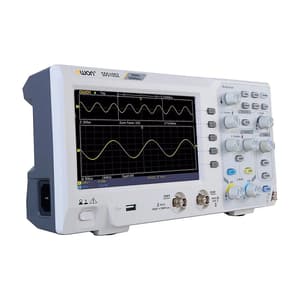

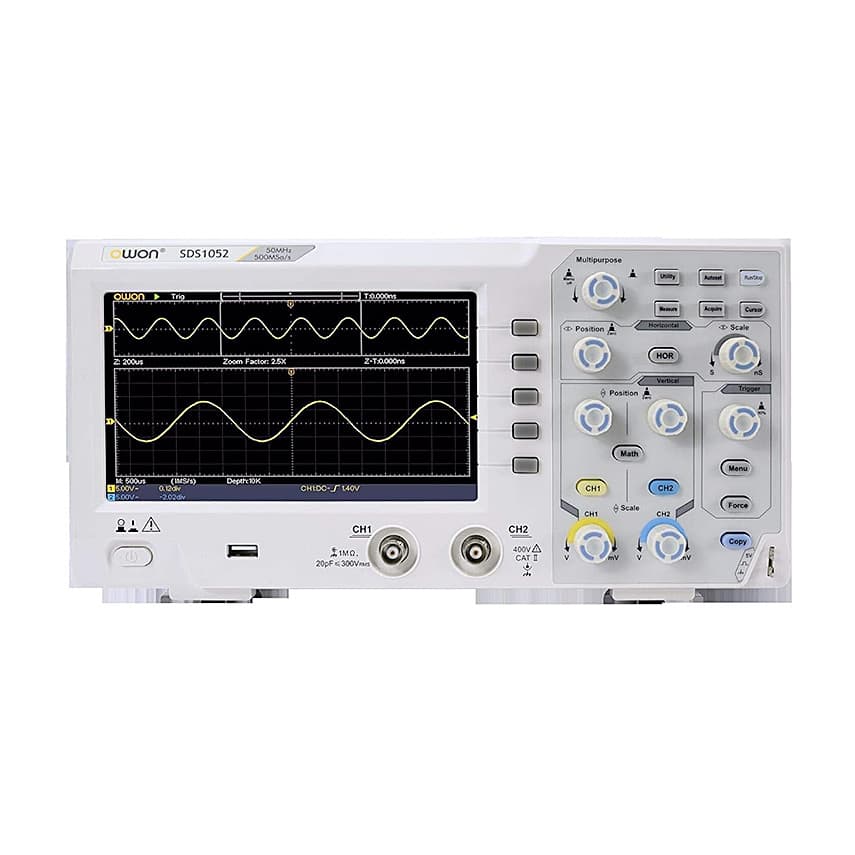

The OWON SDS1052 offers a 7-inch color LCD screen with 800x600 resolution. The SDS1052 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory.

• 2-Channel
• Ultra-thin body
• 7 inch high resolution LCD
• SCPI, and LabVIEW supported

Application:

• Electronic circuit debugging
• Circuit testing
• Design and Manufacture
• Education and Training
• Automobile maintenance and testing

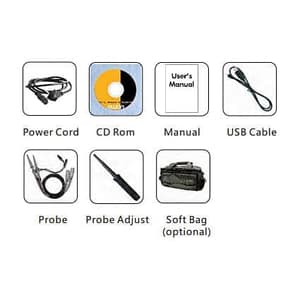

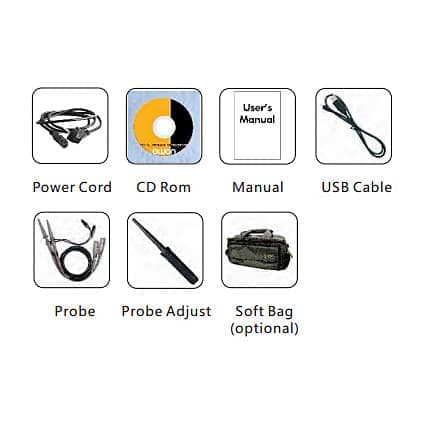

What's Included In This Package:

• Power Cord
• CD Room
• Manual
• USB Cable
• Probe / Probe Adjust

Specification:

Interval (T) Accuracy (full bandwidth)		Single : ±(1 interval time + 100ppm x reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)
Input Coupling		DC, AC , and GND
Vertical Resolution (A/D)		8 bits (2 channels simultaneously)
Vertical Sensitivity		5mV/div - 5V/div (at input)
Trigger Type		Edge, Video
Trigger Mode		Auto, Normal, and Single
Trigger Level		±5 divisions from screen center
Line / Field Frequency (video)		NTSC, PAL and SECAM standard
Cursor Measurement		V, and T between cursors
Automatic Measurement		Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
Waveform Math		+, -, x, ÷, invert, FFT
		16 waveforms
Lissajous Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees



Compact Design:

Snapshot: One click, all measurement value comes from 30 auto-measurement options.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
