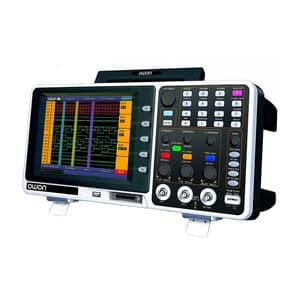

• 60 MHz.,2 CH / 8 Bit, Logic Analyser, Coloured 8 “,1GS/s, USB+Software
• 2 in 1 (DSO + LA)
• 8 inch color LCD
• USB data transmission supported
• 20 automated measurements

Digital Storage Oscilloscope:

• Bandwidth : 60MHz - 100MHz
• Sample rate : 1GS/s
• Auto-scale function
• FFT

Logic Analyzer:

• Bandwidth : 100MHz
• Sample rate : 1GS/s
• 16 input channels

Application:

• Design and debug
• Circuit function test
• Education and training
• Mixed signal circuit test

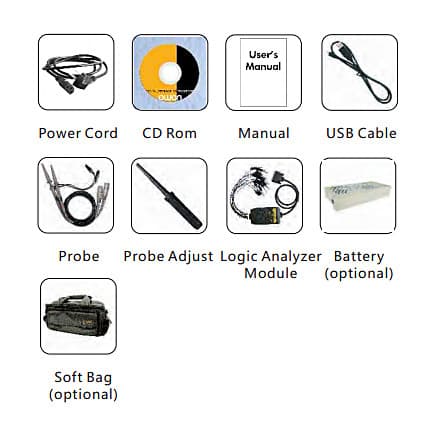

What's Included In This Package:

• Power Cord
• Cd Room
• Manual
• USB Cable
• Probe
• Probe Adjust
• Logic Analyzer Module

(Digital Storage Oscilloscope) Performance Specifications:

Bandwidth		60MHz
Sample Rate		1GS/s
Rise Time		≤5.8ns
Display		8'' color LCD , 640 x 480 pixels
Channel		dual + external trigger
Horizontal Scale (s/div)		2ns/Div - 100s/Div, Step by 1-2-5
DC Accuracy (average)		average>16 : ±(3% reading + 0.05div) for ?V
Waveform Math		+, -, *, /, invert, FFT
Vertical Sensitivity		2mV/div - 10V/div
DC Gain Accuracy		±3%
Vertical Resolution (A/D)		8 bits (2 channels simultaneously)
Interpolation		sin (x) / x
Max Input Voltage		400V (DC + AC peak)
Probe Attenuation Factor		1X,10X,100X,1000X
Trigger Mode		Edge, Video, Alternate, Pulse, and Slope
Acquisition Mode		Normal, Peak Detect, and Average
Record Length		2M points
Waveform Storage		4 waveforms
Automatic Measurement		Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
Waveform Math		+, -, *, /, invert, FFT
Power Supply		100 - 240V AC, 50Hz / 60Hz, CAT II
Lissajous Figure	Bandwidth	60MHz
	Phase Difference	± 3degrees
Communication Interface		USB host, VGA (optional), and USB device
Fuse		1A, T class, 250V
Battery		7.4V 8000mAh (optional)
Dimensions (W x H x D)		370 x 180 x 120 (mm)
Device Weight		2.20 kg



(Logic Analyzer) Performance Specifications:

Sample Rate		20S/s - 1GS/s
Bandwidth		100MHz
Channel		16
Record Length		4M points
Input Impedance		660KΩ ± 5%, in parallel with 15 ± 5pF
Trigger Mode		Edge, Bus, State, Data Alignment, Data Width, and Distributed Queue
Trigger Position Setting		Pre-trigger, Mid-trigger, and Re-trigger
Threshold Voltage		±6V (4 settings)
Input Signal Range		±30V
Data Search		available
Data System		binary, decimal, and hex
Digital Filter		0, 1, 2 optional
Setting Storage		10 settings
USB Flash Disk Storage		available
