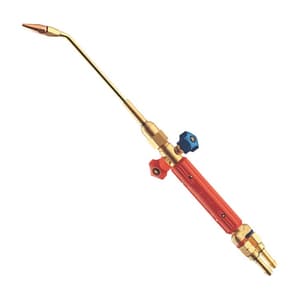

Pilot Gas Torches are light in weight, convenient in handling and effective in all type of jobs involving metals offering the assurance of engineering professionalism.

All-new features are encased in a familiar package. With its ergonomic design, Pilot’s new next-gen welding torches deliver high performance coupled with easy handling and safety protection, ensuring results that surpass the ordinary!

• Sturdy high quality brass body.
• Nylon sealed gas valves preventing leak prolonging life service.
• Lightweight & convenient to handle.
• In-built mixer.

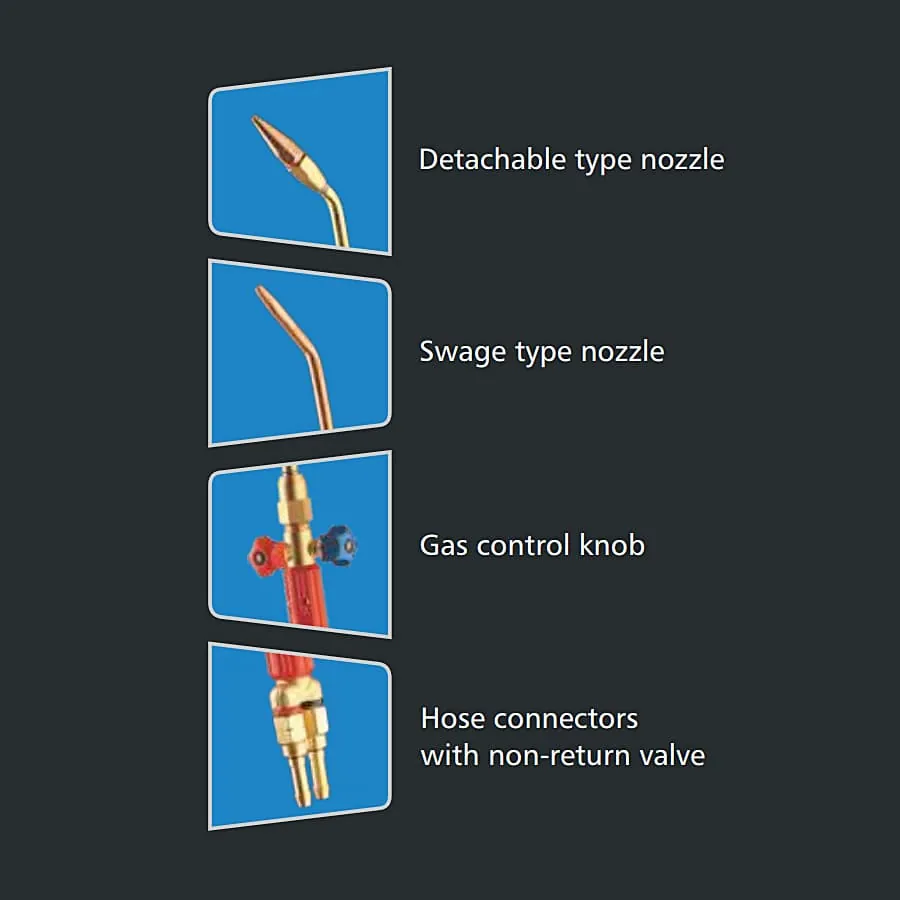

• Detachable Type Nozzles detachable copper tips available in sizes of 0, 1, 2 & 3

Areas of Application:

	Garages
	Service Stations
	Wrought Iron Furniture

Nozzle Selection Chart:

Welding thickness MS	mm	0.6	0.91	1.2	2.1	2.6	3.2	3.9	4.8	6.4	8
Tip number		0	1	2	3	5	7	10	13	18	25
Oxygen pressure	kg/sq. cm	0.14	0.14	0.14	0.14	0.14	0.28	0.28	0.28	0.42	0.42
Acetylene pressure	kg/sq. cm	0.14	0.14	0.14	0.14	0.14	0.28	0.28	0.28	0.42	0.42
Consumption of each gas	cu m/hr	0.03	0.03	0.06	0.09	0.14	0.02	0.03	0.04	0.05	0.07

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
