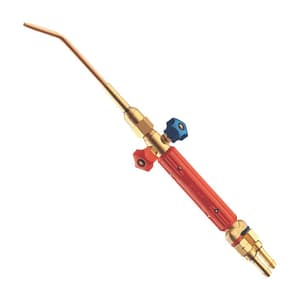

Pilot Gas Torches are light in weight, convenient in handling and effective in all type of jobs involving metals offering the assurance of engineering professionalism.

All-new features are encased in a familiar package. With its ergonomic design, Pilot’s new next-gen welding torches deliver high performance coupled with easy handling and safety protection, ensuring results that surpass the ordinary!

• Sturdy high quality brass body.
• Nylon sealed gas valves preventing leak prolonging life service.
• Lightweight & convenient to handle.
• In-built mixer.

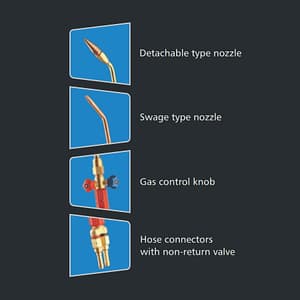

• Swage Type Nozzles Detachable nozzles available in sizes of 0, 1, 2 & 3.

Areas of Application:

	Garages
	Service Stations
	Wrought Iron Furniture

Nozzle Selection Chart:

Welding thickness MS	mm	0.6	0.91	1.2	2.1	2.6	3.2	3.9	4.8	6.4	8
Tip number		0	1	2	3	5	7	10	13	18	25
Oxygen pressure	kg/sq. cm	0.14	0.14	0.14	0.14	0.14	0.28	0.28	0.28	0.42	0.42
Acetylene pressure	kg/sq. cm	0.14	0.14	0.14	0.14	0.14	0.28	0.28	0.28	0.42	0.42
Consumption of each gas	cu m/hr	0.03	0.03	0.06	0.09	0.14	0.02	0.03	0.04	0.05	0.07
