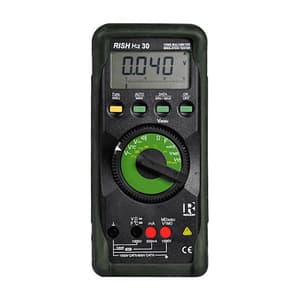

Insulation resistance with analog/digital multimeter measuring Vac Vdc Vac+Vdc Hz mADC mAAC+DC Ohm continuity, Diode Farad Temperature AC I measurement with clip-on sensor with measureemnt of 3GOhm with test V upto 1000V, Functions of Min, Max, Auto off.

Features:

• Insulation resistance measurement up to 3G Ohm:Insulation resistance measurement up to 3G Ohm  with Test voltages selection: 50 V, 100V, 250V, 500V and 1000V.
• Route mean square value with distorted wave form: Measuring principal employed permits the measurement of rout mean square value (TRMS) OF AC quantities and mixed quantities (AC and DC) regardless of wave form.
• AC Current measurement with clip-on sensor: Current measurement up to 300A with clip-on sensor having ratio 1mV/10mA.
• Min/Max Function: By pressing min/max button instrument will start recording minimum and maximum readings.
• Temperature measurement: Temperatures from -200 to 800 ºC using pt100 and pt 1000 sensors.
• Auto Power Off: In order to save the power of the Batteries, the meter will automatically shut OFF if it detects no activity for 10 minutes.
• Continuity test: This permits resting for short circuit and open circuit. In addition to the display, a facility of sound signal is available.
• AUTO and MANUAL ranging modes: In AUTO ranging mode the instrument automatically selects the range with best resolution depending on the applied input. In MANUAL ranging mode range is user selectable using MAN key.
• Indication of negative values on the analog scale: When measuring DC quantities, also negative values are shown on the analog scale so that variations of the measured value can be observed at the Zero point.
• Protection from dust and water: IP50 (Instrument) IP20 (For terminals) as per IEC60529
• Applicable International Safety standards: 1000 V CAT II/600V CAT III as per International Safety standard IEC 61010-1- 2001 and IEC 61557.
• Signaling in the case of a blown fuse: The display shows “FUSE” in case of blown fuse.
• Automatic blocking socket (ABS): The automatic terminal blocking system prevents incorrect connection of test lead and incorrect selection of measurement quantity, which provide safety to the user.
• Interface and software RISH com 100: The multimeters are fitted with a serial RS-232 C interface via which the measured values can be transmitted to a PC. These values, electrically isolated, are transmitted to the attachable interface adaptor with infrared light through the case.
• Analog Scale: Analog scale that updates at the rate 20 times/sec to observe fluctuations in input.
• Continuous On Mode: In this mode, AUTO POWER OFF is disabled.
• DATA Hold Function: By pressing DATA HOLD button, reading on the display can be latched for Hands free operation.
• NULL ZERO Correction for Resistance: For Low ohm measurement, the lead resistance can be compensated by pressing the shift key (Yellow Key)
• NULL ZERO Correction for Capacitance: Null zero connection for capacitance. For nF range, stray capacitance can be compensated by shift key (Yellow Key)
• Diode Measurement: For testing diode and transistors, diode measurement function is available.
• Display with Backlit: For clear visibility in dark conditions, RISH MIT 30 is featured with backlit.

Reference conditions for Accuracy:

• Reference temperature: 23°C ± 2K
• Relative Humidity: 45% - 55% RH
• Waveform of measured quantity: Sinusoidal
• Input frequency: 50 or 60 Hz ±2%
• Battery Voltage: 8V ± 0.1V

Battery Voltage Battery type Battery Life:

• Battery Voltage: 6 x 1.5V Cells
• Battery Type: Alkaline manganese Dioxide cell as per IEC LR 03 , ANSI 24A (Size AAA)
• Battery Life: Minimum 600 hours on Vdc, Adc ,240 hours on Vac, Aac, For MΩISO 1000 V, 800 Measurements possible with nominal current MΩISO 500, 250V, 100V, 50V, 2400 Measurements possible with nominal current.

Interface:

• Type: RS232C, serial, as per DIN 19241.
• Data transmission: Optically with infrared light through the case.
• Baud rate: 8192 bits/s

Applicable Standards:

• For Use as a Insulation Measuring Instrument: Devices for testing, measuring and monitoring protective safety measures in system with voltages of up to 1000 V A.C. and 1500 V D.C. (IEC 61557) / For general requirements (IEC 61557- 1) / For Insulation resistance measuring instruments (IEC 61557- 2)
• EMC: Class B (IEC 61326)
• Immunity: 8 KV Atmosphere Discharge & 4 KV Contact Discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
