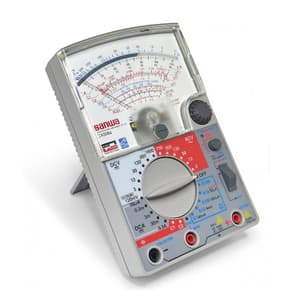

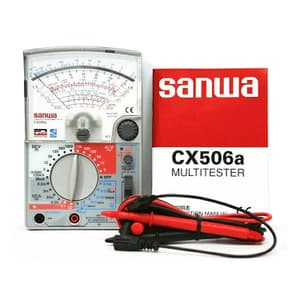

The CX506a is a multimeter designed for low-voltage circuit measurements and home electric appliances. This is a taut-band type meter (15μA) with internal magnet that features an all-plastic rigid body and wide range of measurement functions - 26 to be exact. It can measure DC voltages up to 1000 volts with an accuracy of ±2.5% of full scale, and AC voltages of up to 750 volts with an accuracy of ±3.0% of full scale. Users can also use this multi-tester to measure DC current, resistances, and capacitances. The device also has a polarity reversal switch for DCV and DCA. The CX506a also features a transistor check function that allows the users to test their BJTs (Bi-junctional transistors).

Features:

• Wide measurement functions 26ch switches
• Polarity reversal switch for DCV and DCA
• High-sensitivity taut-band meter (DC 50k Ω/V)
• Capacitance measurement by built-in transistor oscillator

Technical Data:

Function	Measuring Range		Tolerange
DCV	120m (4kΩ)/3/12/30/120 300 (50kΩ/V) / 1000V (15kΩ/V)		120m:±4% ±2.5% of full scale
ACV	3/12/30/120/300/750V (8kΩ/V)		±3% of full scale (3/12V:±4% of full scale)
DCV	30µ/0.3m/3m/30m/0.3A		±2.5% of full scale (30μ/0.3mA:±3% of full scale)
Resistance	5k/50k/500k/5M/50MΩ		Within ±3% of arc
Capacitance	C1: 50p ~ 0.2μF; C2: 0.01μ~20μF; C3:1 ~ 2000μF		C1/C2: ±6% of arc C3: Approximate value
DC current gain hFE	Transistor hFE: 0 to 1000		Approximate value

Functions:

	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	hFE Provided with graduations for measuring the DC current amplification factor (hFE) of a transistor.
	Polarity switch The positive and negative polarity of the measuring terminal can be changed by this switch.
