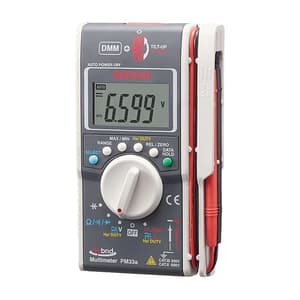

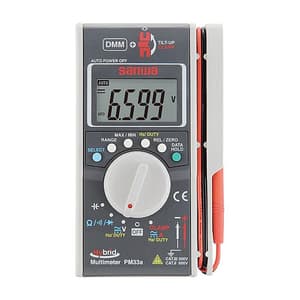

The PM3 digital multimeter can perform all basic measurements such as voltage, resistance, capacitance, frequency, and duty cycle as well as continuity test. The probes in the Sanwa PM3 are internally connected with the circuit and cannot be removed unlike in a standard size multimeter. The device is EN61010-1 CAT.II 500V compliant, meaning it can be used to measure the main socket and plug-in loads such as home electrical appliances.  For keeping the device protected against moisture and dust, the PM3 comes with a leather case that holds both the multimeter and test leads in place.

Features:

• 0.7% Accuracy
• Resistance measurement
• Capacitance measurement (not suitable for measurement of condensers with large leak current).
• Frequency measurement (AC sine wave only)
• Duty cycle measurement
• Continuity test with buzzer
• Data hold
• Relative value
• Auto power save (15min after the last operation (cancelable))
• EN61010-1 CAT.II 500V compliant

Technical Data:

	Range	Accuracy	Resolution
DCV	660m / 6.6 / 66 / 600V	±(0.7%+3)	0.1mV
ACV	660m / 6.6 / 66 / 600V	±(1.4%+6)	0.1mV
DCA	100A	±(2.0%+5)	0.1A
ACA	100A	±(2.0%+5)	0.1A
Resistance	660 / 6.6k / 66k / 660k / 6.6M / 66MΩ	±(0.9%+3)	0.1Ω
Capacitance	6.6n / 66n / 660n / 6.6μ / 66μ / 660μ / 6.6m / 66mF	±(5.0%+10)	0.001nF
Frequency	660 / 6.6k / 66kHz	±(0.5%+3)	0.1Hz
Duty cycle	20%-80%	+(0.5%+5)	-
Continuity	Buzzer sounds at below 30Ω. Open voltage:approx.1.2V
Diode test	Approx.3V (Open Voltage)

Functions:

	Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting.
	Frequency in Hertz Commercial frequencies of 50Hz/60Hz can be measured.
	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%).
	Data Hold A value indicated on the display is fixed for reference even after the test lead is removed. A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
	Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.
	AC/DC Amperage Measure Both AC & DC Amps.
