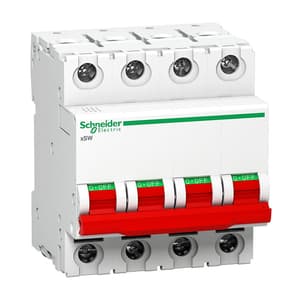

This Acti9 xSW is a modular and reliable switch disconnector. it is a 4 poles, rated current is 100A, and o poleserating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C.

The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Total number of 18 mm modules 4. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-1,EN/IEC 60947-3.

Complementary

[Ie] Rated operational current	100 A at 415 V AC
[Ui] Rated insulation voltage	6 kV
[Uimp] Rated impulse withstand voltage	500 V
Poles description	4P
Rated breaking capacity	2.5 kA
Short-circuit withstand	20 A
[Us] Rated supply voltage	48 V DC 1P 100 V DC 2P
Utilisation category	AC-22
Total number of 18 mm modules	4
Product destination	Distribution board

Environment

Ambient air temperature for operation	-20…50 °C
Pollution degree	3
Standards	IEC 60947-3 IEC 60669-1

Packing Units

Unit Type of Package 1	Db
Number of Units in Package 1	1
Package 1 Height	7.4 cm
Package 1 Width	3.55 cm
Package 1 Length	8.5 cm
Package 1 Weight	150 g
Unit Type of Package 2	S01
Number of Units in Package 2	24
Package 2 Height	15 cm
Package 2 Width	15 cm
Package 2 Length	40 cm
Package 2 Weight	3600.55 g
Unit Type of Package 3	PAL
Number of Units in Package 3	192
Package 3 Height	80 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	28822 g
