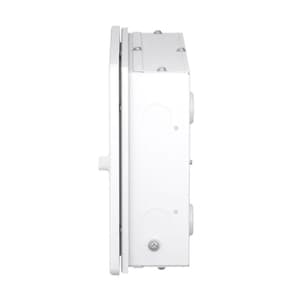

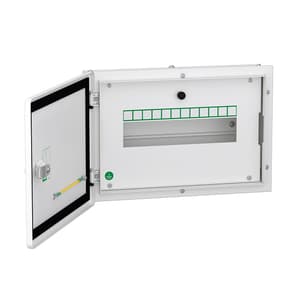

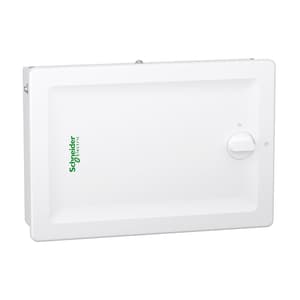

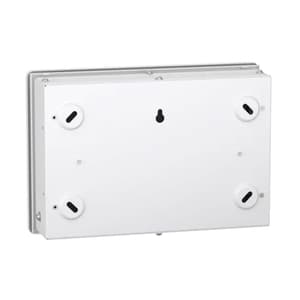

This Acti9 distribution board comes with reversible double metal door for door opening. This distribution board gives total flexibility to mount an type and size of modular devices as per load requirement. It allows the mounting of modular devices on 12 modules of 18 mm. The number of ways is 12. The dimensions are (W) 354mm x (H) 242mm x (D) 95.4mm.

The color of the distribution board is white (RAL 9003). The degree of protection is IP43, IK09 with the double metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Complementary

Enclosure mounting	Surface Flush
Protection device type	Outgoer: miniature circuit breaker (MCB) - 1P Main incomer: isolator - 2P Main incomer: miniature circuit breaker (MCB) - 2P Main incomer: residual current circuit breaker (RCCB) - 2P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) - 2P
Total number of 18 mm modules	12
Number of ways	12 ways
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	242 mm external:
Width	354 mm external:
Depth	95.4 mm external:

Environment

IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI ERDA

Packing Units

Unit Type of Package 1	Db
Number of Units in Package 1	1
Package 1 Height	11.2 cm
Package 1 Width	36.2 cm
Package 1 Length	24.8 cm
Package 1 Weight	4.38 kg
