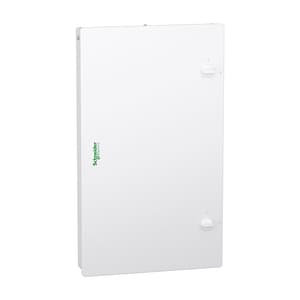

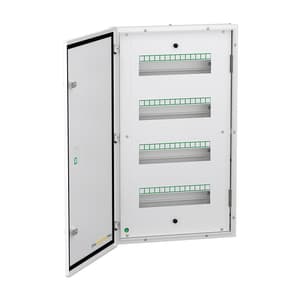

This Acti9 distribution board comes with reversible double metal door for door opening. This distribution board gives total flexibility to mount an type and size of modular devices as per load requirement. It allows the mounting of modular devices on 4 rows of 14 modules of 18 mm (56 modules total). The dimensions are (W) 436mm x (H) 740.6mm x (D) 101.6mm.

The color of the distribution board is white (RAL 9003). The degree of protection is IP43, IK09 with the double metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Complementary

Enclosure mounting	Surface Flush
Number of horizontal rows	4
Number of 18 mm modules per row	14
Total number of 18 mm modules	56
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	740.6 mm external:
Width	436 mm external:
Depth	101.6 mm external:

Environment

IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	ERDA CPRI

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.8 cm
Package 1 Width	74.6 cm
Package 1 Length	44.2 cm
Package 1 Weight	15.68 kg
