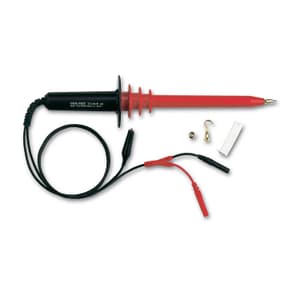

Testec 40kV High Voltage Multimeter Probe, TT-HVP 40
Roll over image to zoom zoom_in
- Product Type: Probes & Accessories
- Max. Input Voltage (DC): 40kV
- Max. Input Voltage (AC): 28kV RMS (0 - 300Hz)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹15080.4 (Incl. of all taxes)
₹12780+ ₹2300.4 GST (18%)
7 Business Days
1 Pcs
38220090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The Testec High Voltage Probe TT HVP 40 is an accessory to be used with analog or digital multimeters having an input resistance of 10 MΩ. The Testec Model TT-HVP 40 is a 1000:1 divider which extends a voltmeter’s measurement capability to 40 kV dc/ 28 kV rms ac.
Accuracy:
- DC volts: ±5% (1 kV to 20 kV) / ±6% (20 kV to 40 kV)
- AC Volts: ±5% at 60 Hz
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PR.00150 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | TTHVP40 |
| Max. Input Voltage (DC) | 40kV |
| Max. Input Voltage (AC) | 28kV RMS (0 - 300Hz) |
| Attenuation Ratio | x1000 @ 10MOhm / x2000 @ 1MOhm |
| Input Impedance | 1000M Ohm |
| Bandwidth | 300Hz (-3dB) |
| Cable Length | 1 Mtr |
| Altitude | Up to 4600 meters (15.000 ft) |
| Temperature Coefficient | Less than 200ppm/°C |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | Up to 80% relative humidity at +40°C |
| Order Number | 15001 |
| Dimensions (L x W x H) | 350 x 75 x 75 mm |
