TKK Hoist 9 Ton / 1.5Mtr Lever Chain Pulley Block (E Series), E900
Roll over image to zoom zoom_in
- Weight: 49.8 Kg
- Product Type: Lever Chain Pulley Blocks
- Capacity: 9 Ton
- Length (Mtr): 1.5 Mtr
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹20945 (Incl. of all taxes)
₹17750+ ₹3195 GST (18%)
1 Business Days
1 Pcs
8425
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

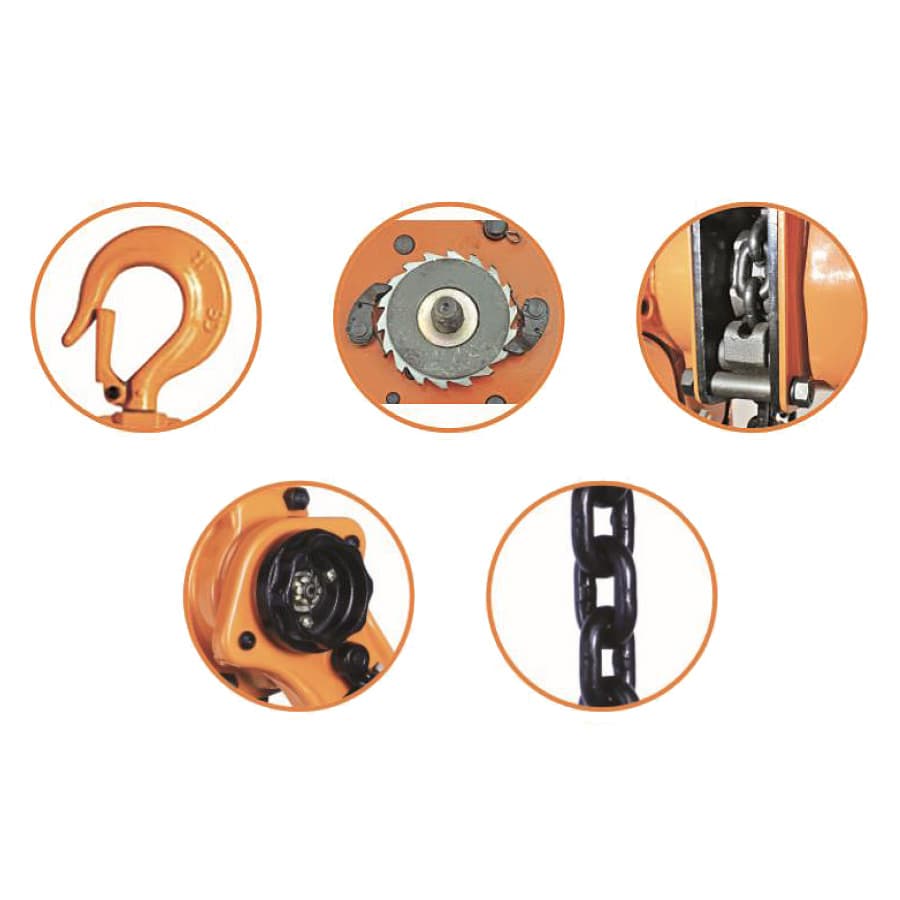

- 360 degree handling rotation with stroke to ratchet indicators.
- Forged and heated treat load hooks with safety latch.
- Double pawl brake system.
- Premium alloy steel grade 80 load chain. Zinc plate, black oxidation are optional.
- Sealed needle bearing, low handle force and more efficient.
- Meet requirements EN 131572004.
- Widely used in nuclear power station, thermal power station, etc.
- Includes 1 Year Warranty.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | MA.CH.LE.00005 |
|---|---|
| Product Type | Lever Chain Pulley Blocks |
| Model No | E900 |
| Capacity | 9 Ton |
| Length (Mtr) | 1.5 Mtr |
| Test Load (Kg) | 11250 Kg |
| Hmin Headroom (mm) | 860 mm |
| Force Of Full Load (N) | 420 |
| Load Chain Diameter (mm) | 10 mm |

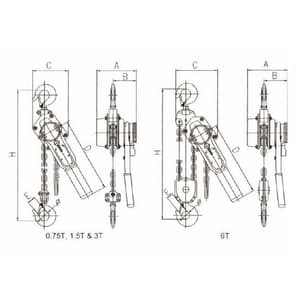

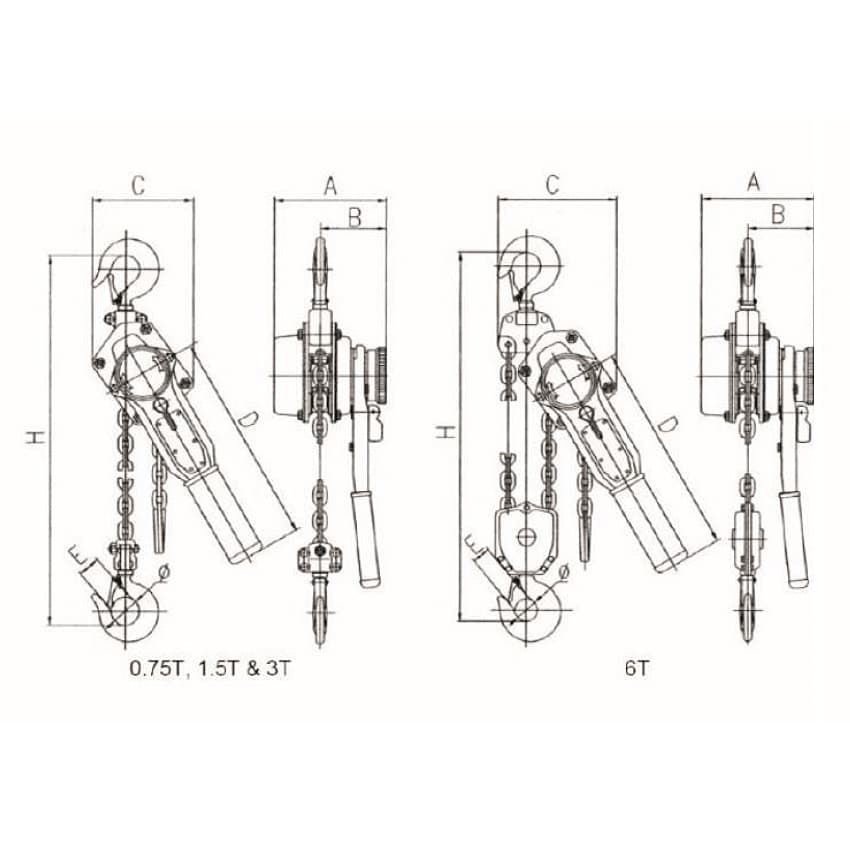

| Dimension (mm) A | 204 mm |
| Dimension (mm) B | 114 mm |
| Dimension (mm) C | 340 mm |
| Dimension (mm) D | 75 mm |
| Dimension (mm) E | 54 mm |
| Shipping Weight (Kg) | 51.8 Kg |
