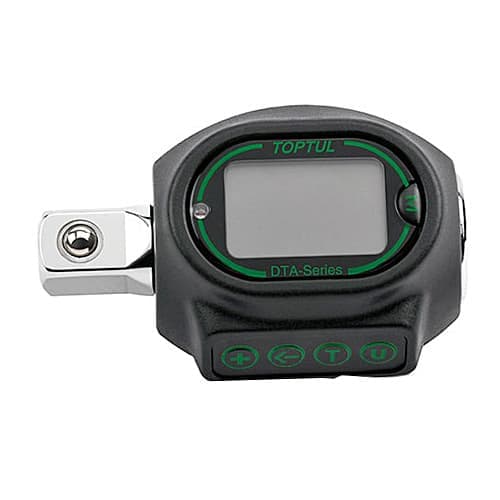

Toptul 6 - 30 Nm / 1/4"(F) x 1/4"(M) Digital Torque Adapter, DTA-030N
Roll over the image to zoom in
Key Features
- Product Type: Digital Torque Adapter
- Torque Value: 6 - 30 nm
- Drive Size: 1/4 Inch
- Length: 75 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,552 (Incl. of all taxes)
₹4,705 + ₹847 GST (18%)
MRP was MRP ₹5,738
Save 18%
3 Business Days
1
82041120
Download Product LeafletNot available
Download Toptul CatalogueNot available
Download Toptul CatalogueNot available
Product Information
Highlights
TOPTUL The Mark of Professional Tools achieved continuous growth by closely observing the market in order to produce customer-oriented products. Our Digital Torque Adapter is made to the same rigorous quality standards that our commercial customers demand. With the help of Digital Torque Adapter, you can easily manage and track your business.
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
- Torque accuracy: CW ±3% & CCW ±3% tolerance of the set scale value
- Precise reading accuracy for a minimum 5000 tightening cycles

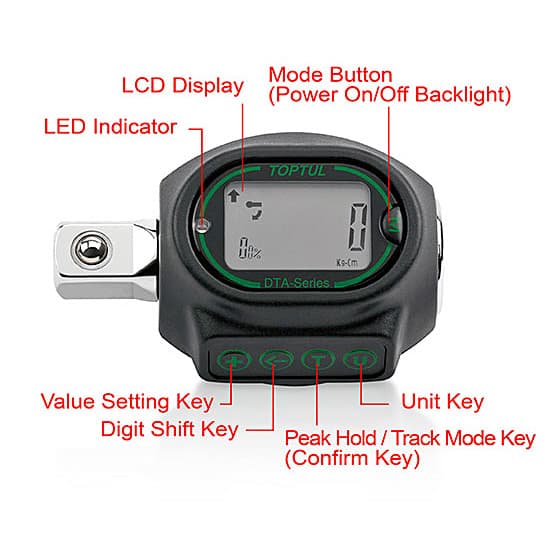

- Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
- Torque unit selection: Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
- Storage memory: 10 sets
- Low battery indicator and auto shut off (after 3 minutes)
- Large LCD display for clear reading
- Tested and certified according to DIN EN ISO 6789, BS EN 26789
- Buzzer & LED indication for pre-settable target torque
Features:
| Torque Accuracy | CW ±3% & CCW ±3% |
| Storage Memory | 10 Sets |
| Torque Unit Selection | Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm |
| Display Resolution | 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m, 1Kg-cm |
| Operating Mode | Peak Hold Mode / Track Mode |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 0 ~ 90% |
| Battery | 3V CR2032 x 1pc |
| Battery Life | 50 Hours |
| Auto Shut Off | 3 Minutes (when not in use) |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Torque Value | 6 - 30 nm |
|---|---|
| Drive Size | 1/4 Inch |
| Length | 75 mm |
| Torque Range (Ft - Lb) | 4.4 ~ 22.1 |
| Torque Range (In - Lb) | 53 ~ 265 |
| Torque Range (Kg - m) | 0.61 ~ 3.06 |
| Torque Range (Kg - cm) | 61 ~ 306 |
