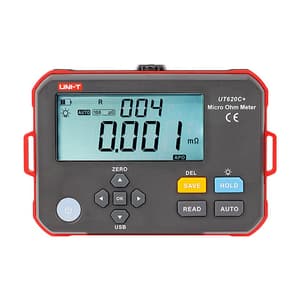

UT620C+ can measure a wide range of resistance values with high precision. It is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.

Features:

• Micro-ohm level measurement
• The measurement current (≤1A)
• Test current (≤1A) / Open circuit voltage (≤4.2V) / Input protection (≤36V AC/DC)
• Power consumption: measurement power (≤8W)
• 500 groups of data storage
• Large LCD display
• Automatic shutdown, longer standby time
• The lithium battery can be used repeatedly
• Compact design, easy to carry and operate
• Functions: Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on.

Technical Data:

Resistance range	100.1kΩ ~ 300.0kΩ / 3uA	100Ω
	10.01kΩ ~ 100.00kΩ / 3uA	10Ω
	1.001kΩ ~ 10.000kΩ / 10uA	1Ω
	100.1Ω ~ 1000.0Ω / 100uA	0.1Ω
	10.01Ω ~ 100.00Ω / 1mA	0.01Ω
	1.001Ω ~ 10.000Ω / 10mA	0.001Ω
	100.1mΩ ~ 1000.00mΩ / 100mA	0.1mΩ
	0.001mΩ ~ 100.00mΩ / 1A	0.01/0.001mΩ

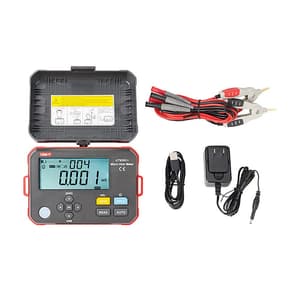

Package Content:

• 1x Micro-ohmmeter

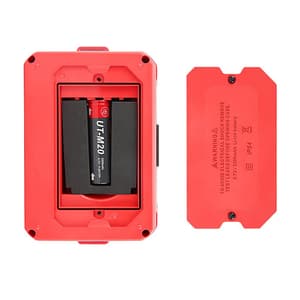

• 1x DC 3.7V 3200mAh lithium battery
• Other Tools
