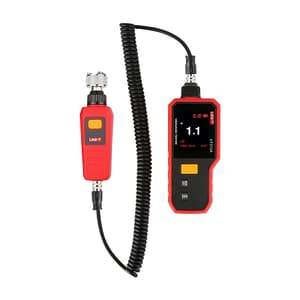

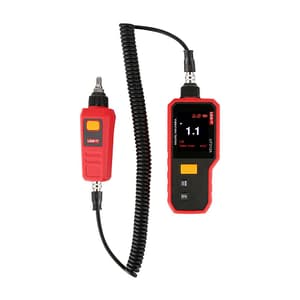

UNI-T 0.1m/s² Handheld Digital Vibration Tester, UT312A
- Weight: 364 Grams
- Product Type: Vibration Meter
- Acceleration (PEAK) Resolution: 0.1 m/s²
- Acceleration (PEAK) & Velocity (RMS) Accuracy: ±(5%+2dgts)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹27000.76 (Incl. of all taxes)
₹22882+ ₹4118.76 GST (18%)
MRP ₹26920
SAVE 15%
7 Business Days
1 Pcs
90318000
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
UT312A seires is a handheld vibration tester which consists of acceleration sensor and digital display circuit. It is mainly used to measure vibration acceleration, velocity and displacement of mechanical equipment. It has the advantages of wide range, easy operation and convenient carrying. It is an ideal inspection tool that can be used for patrol detection of equipment vibration in power, metallurgic and petrochemical industries.
Features:
- Acceleration / velocity / displacement measurement
- High/low frequency acceleration modes
- Multiple probes
- High sensitivity sensor
- Come with a flashlight
- LCD TFT and automatically rotatable screen
- Rechargeable lithium battery
- Simple design and compact structure
- Automatically rotatable screen
- LCD backlight
- Battery indication
- Operating temperature and humidity: 0°C ~ 40°C; ≤80%RH, non-condensing
Package Content:
- 1x Vibration Tester
- Long and short probe
- U-type magnetic sucker
- USB-C charging cable
- User manual
- Safety instructions
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.VI.00020 |
|---|---|
| Product Type | Vibration Meter |
| Model No | UT312A |
| Acceleration (PEAK) Resolution | 0.1 m/s² |
| Velocity (RMS) Resolution | 0.1 mm/s |
| Acceleration (PEAK) & Velocity (RMS) Accuracy | ±(5%+2dgts) |
| Displacement (P-P) Resolution | 0.001 mm |
| Displacement (P-P) Accuracy | ±(10%+2dgts) |
| Probes | Magnetic Sucker |
| Charging Interface | Type-C |
| Charging Voltage | DC 5V |
| Charging Time | About 3h |
| Battery Duration | About 12h |
| Storage Temperature | -20°C ~ 60°C |
| LCD Type | 2.4 inch TFT Color Screen, Full View |
| Auto Power Off | 5 Minutes Without Operation |
| Battery Type | 1350mAh / 3.7V Lithium Battery |
| Dimensions (mm) | 168 × 28 × 64 mm |
| Certificates | CE, UKCA |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ |
