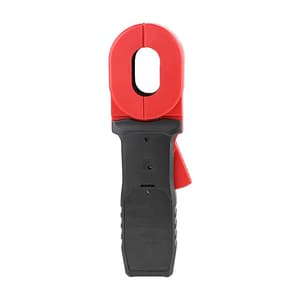

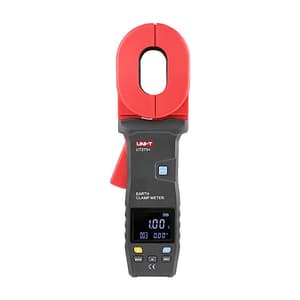

The UT273+ Clamp Earth Resistance Tester is used for earth resistance test. This meter uses an EBTN screen with a dual display function (the resistance & current are displayed). It also has functions such as a real-time clock, data storage, data review, alarm, and automatic shutdown. The tester is characterized by its aesthetic appearance, wide range, high resolution, easy operation, portability, stable performance and strong ability to resist interference. It is a good tool for electrical engineers.

Features:

• Earth resistance test
• Current test
• Large black screen
• Large jaw size
• Strong anti-interference
• Alarm function
• Data storage
• Timer
• Anti-interference
• Overload protection
• Battery state indication
• Auto power off

Technical Data:

	Range	Accuracy
Earth resistance (Ω)	0.010Ω - 0.199Ω	± (1%+0.02Ω)
	0.20Ω - 1.99Ω	± (1%+0.05Ω)
	2.0Ω - 49.9Ω	± (1%+0.5Ω)
	50.0Ω - 99.5Ω	± (1.5%+1Ω)
	100Ω - 199Ω	± (2%+2Ω)
	200Ω - 395Ω	± (5%+5Ω)
	400 - 590Ω	± (10%+10Ω)
	590Ω - 600Ω	± (20%+20Ω)
Current (AC)	1.00mA - 9.99mA	± (2.5%+1mA)
	10.0mA - 99.9mA	± (2.5%+5mA)
	100mA - 999mA	± (2.5%+10mA)
	1.00A - 9.99A	± (2.5%+0.2A)
	10.0A - 20.0A	± (2.5%+0.5A)

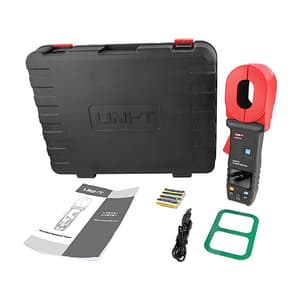

Package Content:

• 1x Clamp on Earth Resistance Tester
• 4x AA alkaline
• Calibration loop
• USB Cable (Data Transmission)
• User manual
• Gift box
• Tool box
