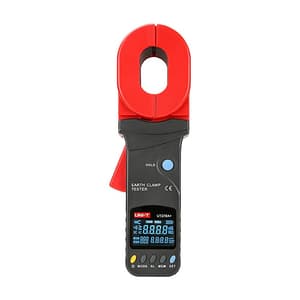

UT278A+ series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. These clamps’ double insulation design makes them durable tools for outdoor work and effective in blocking interference from the environment.

Features:

• Auto range
• Data hold
• Data recall
• LCD backlight
• Resistance limit alarm
• Low battery indication
• Auto calibration
• Visual & audible alarm
• Auto power off
• Jamming signal recognition
• Over-range display

Technical Data:

Specifications	Range	Accuracy
Earth Ground Resistance (Ω)	0.01~0.099Ω	±(1%+0.01)
	0.1~0.99Ω	±(1%+0.01)
	1~49.9Ω	±(1%+0.1)
	50~99.5Ω	±(1.5%+0.5)
	100~199Ω	±(2%+1)
	200~395Ω	±(5%+5)
	400~590Ω	±(10%+10)
	600~800Ω	±(20%+20)
	800~1200Ω	±(25%+30)
Leakage current (A)	0mA~9mA	±(2.5%+1mA)
	10mA~99mA	±(2.5%+5mA)
	100mA~299mA	±(2.5%+10mA)
	0.3A~2.99A	±(2.5%+0.1A)
	3A~9.9A	±(2.5%+0.3A)
	10A~20A	±(2.5%+0.5A)

Package Content:

• 1x Clamp on Earth/Ground Resistance Tester
• 4x 1.5V batteries (LR6)
• Test ring
• English manual
• Gift box
• tool box
