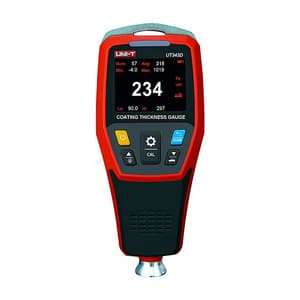

UNI-T 1250µm Coating Thickness Gauge, UT343D

Shop all UNI-T

SKU: ME.NO.CO.00029

Model: UT343D

Roll over image to zoom zoom_in
  1. UNI-T 1250µm Coating Thickness Gauge, UT343D
Video

  • Weight: 175 Grams
  • Product Type: Coating Thickness Meter
  • Measuring Range: 0 ~ 1250µm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

8024 (Incl. of all taxes)

6800+ ₹1224 GST (18%)

MRP ₹8000

SAVE 15%



7 Business Days

1 Set

90303900

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.


Features:

  • LCD brightness control
  • Auto-rotatable screen
  • Unit conversion
  • Audio alarm
  • LED alarm
  • PC analysis software
  • USB communication
  • Quick test mode
  • Auto power off
  • Low battery indication
  • Metal Type: Ferrous/ non-ferrous


Package Content:

  • 1x Coating Thickness Gauge
  • 2x 1.5V AA Batteries
  • Micro USB interface cable
  • standard piece
  • Cloth bag
  • Gift box
  • English manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.CO.00029
Product TypeCoating Thickness Meter
Model NoUT343D
Measuring Range 0 ~ 1250µm
Accuracy ±(3%H+1)µm
Resolution 0.1µm (0~99.9µm); 1µm (100~1250µm)
Measurement Method Single/Continuous
Measurement Mode Max/Min/Avg
Metal Type Ferrous/ Non-ferrous
Display Type 2.0-inches TFT LCD (320 x 240 Pixels)
Data Storage 500 Groups
Power Supply 2x 1.5V AA batteries
Display Size 48 x 36 mm
Product Color Red & Grey
Dimensions (mm) 153.5 x 64.5 x 41 mm
