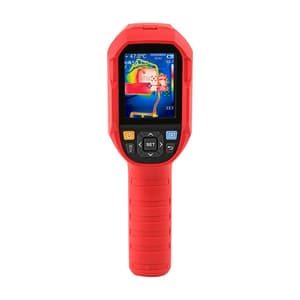

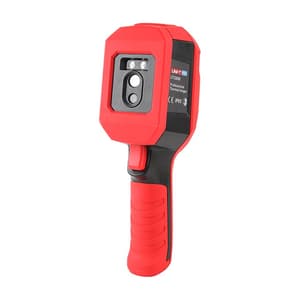

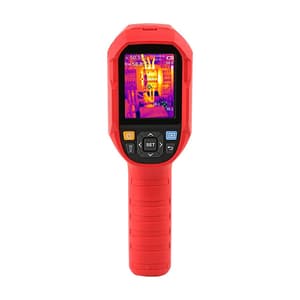

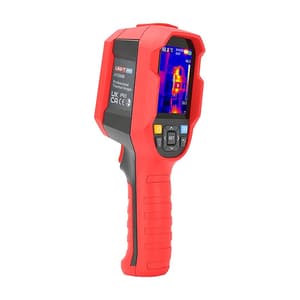

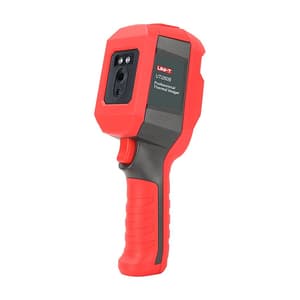

UNI-T -20 to 550°C / -4°F to 1022°F Heavy Duty Thermal Imaging Camera, UTi260B
Roll over image to zoom zoom_in
- Weight: 490 Grams
- Product Type: Thermal Imaging Camera
- Temperature Measurement Range: -20°C to 550°C / -4°F to 1022°F
- IR Resolution: 256×192 Pixels
- On Screen Analyzer: 3 Points
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹30090 (Incl. of all taxes)
₹25500+ ₹4590 GST (18%)
MRP ₹30000
SAVE 15%
7 Business Days
1 Set
90275090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20°C ~ 550°C. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Durable & user-friendly
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- LED flashlight
- PC software analysis and real-time image projection
- Rechargeable Li-ion battery
- 1/4” Tripod Mounting Hole
Applications:
- PCBA inspection
- Motor inspection
- Automotive maintenance
- Solar panel inspection
- Power distribution
- Cabinet inspection
- Electricity facilities inspection
- Mechanical equipment inspection
- Heating equipment inspection
- Building & HVAC inspection
Package Content:
- 1x Heavy Duty Thermal Imaging Camera
- 1x 3.6V 5000mAh Fixed Li-ion battery
- Micro SD card
- Type-C USB cable
- English manual
- Documents download the operation guide card
- Gift box
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.TE.TH.00080 |
|---|---|
| Product Type | Thermal Imaging Camera |
| Model No | UTi260B |
| Temperature Measurement Range | -20°C to 550°C / -4°F to 1022°F |
| IR Resolution | 256×192 Pixels |
| On Screen Analyzer | 3 Points |
| Digital Camera Resolution | 640 × 480 |
| Field of View (FOV) | 56° × 42° |
| Thermal Sensitivity (NETD) | < 60mK |
| Spatial Resolution (IFOV) | 3.8 mrad |
| Frame Rate | < 25Hz |
| Spectral Range | 8 ~ 14 µm |
| Focus | Focus Free |
| Accuracy | ±2°C or ±2% Whichever is Greater |
| Emissivity | 0.01 ~ 1.00 Adjustable (0.95 Default) |
| Display | 2.8inch TFT Display Screen (320×240 Pixels) |
| Color Palettes | 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC) |
| Image Modes | Thermal, Visual image, Fusion, PIP |
| Hi/Lo Temperature Alarm | Icon, LED Flashlight |
| Power Supply | 1x 3.6V 5000mAh Fixed Li-ion battery |
| Battery Operation Time | Up to 6 Hours |
| USB | Type-C |
| IP Rating | IP65 |
| Drop Proof | 2 Meter |
| Storage | Up to 32GB Micro SD card |
| Image/Video Storage Format | BMP |
| Certificates | CE, FCC, RoHS |
| Dimensions (mm) | 236 × 75.5 × 86 mm |
