UNI-T 4 to 90° Digital Angle Meter, LM320D

Shop all UNI-T

SKU: ME.NO.DI.00082

Model: LM320D

Roll over image to zoom zoom_in
  1. UNI-T 4 to 90° Digital Angle Meter, LM320D
  2. UNI-T 4 to 90° Digital Angle Meter, LM320D

  • Weight: 180 Grams
  • Product Type: Digital Angle Meter
  • Rotation Range: 4° - 90°
  • Resolution: ±0.05°
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

1856.14 (Incl. of all taxes)

1573+ ₹283.14 GST (18%)

MRP ₹1850

SAVE 15%



7 Business Days

1 Pcs

90278090

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

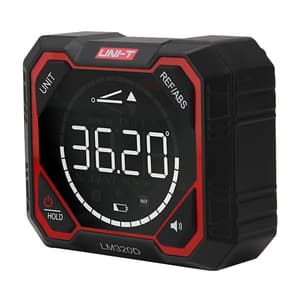

The new LM320D is a lightweight and portable angle meter with a durable aluminum alloy frame. It features a high-definition color display with automatic screen rotation, supporting a full 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. It is widely used in engineering, construction, and mechanical installation fields.


Features:

  • Aluminum alloy frame, lightweight & portable
  • 4×90° angle measurement
  • Relative/absolute measurement modes
  • Multiple unit options: mm/m, in/ft, %, °
  • Rechargeable 1000 mAh lithium battery
  • LED-backlit rotatable screen
  • Equipped with magnetic bases


Package Content:

  • 1x Angle Meter
  • 1x 1000mAh Lithium Battery
  • 1x Type-C Cable
  • 1x Gift Box
  • 1x User Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.DI.00082
Product TypeDigital Angle Meter
Model NoLM320D
Rotation Range 4° - 90°
Resolution ±0.05°
Angle Accuracy & Repeatability ±0.2°
Unit °; %; mm/m; in/ft.
Magnetic Base Two-sided Magnetic (Bottom & rear)
Material Al-alloy frame +ABS
Power Supply 1000 mAh Lithium Battery
Working Temperature 0°C ~ +50°C
Battery Life 14h
Dimensions (mm) 83.5 x 70 x 35.5 mm
Certifications CE, RoHS
Language English
