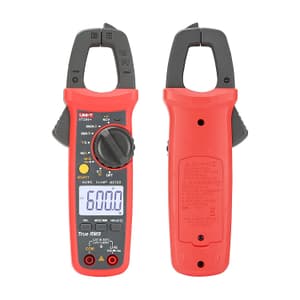

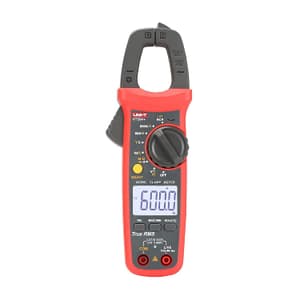

This digital clamp meter is designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

Features:

• True RMS
• LCD backlight
• Large screen and display digits
• 60mF large capacitance measurement

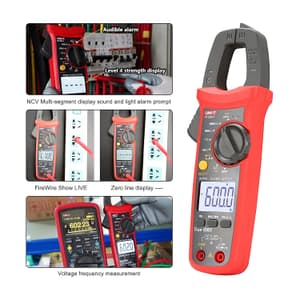

• Neutral/live wire test
• Auto range
• Non-Contact Voltage (NCV)
• Live wire test
• Continuity test / Diode / MAX/MIN
• Relative mode / Zero mode / Data hold
• Low battery indication / Auto power off

Technical Data:

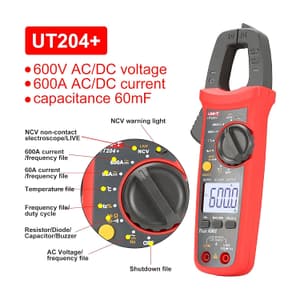

Specifications	Range	UT204+
AC current (A)	600A	±(2.5%+5)
DC current (A)	600A	±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency(Hz)	10Hz ~ 60kHz	±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	60mF	±(4%+5)
Temperature (°C)	-40°C ~ 1000°C	±(1.5%+5)
Frequency (Hz)	10Hz ~ 10MHz	±(0.1%+4)

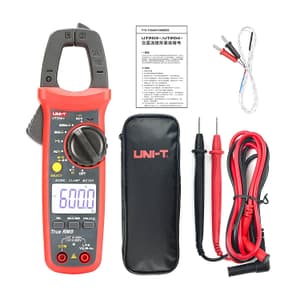

Package Content:

• AC/DC Digital Clamp Meter
• 2x 1.5V Battery (R03)
• Test leads,
• Themocouple
• Gift box
• Carrying bag
• English manual
