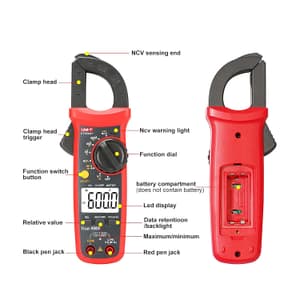

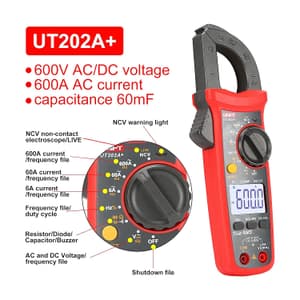

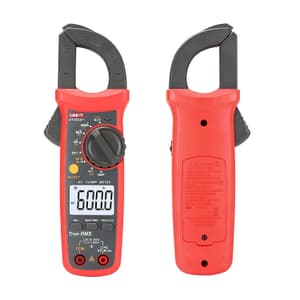

The UT202+ clamp meter offers reliable voltage measurement up to 600V and includes a high-voltage frequency detection range from 10Hz to 10kHz. It features NCV (Non-Contact Voltage) electric field detection with both visual and audible alerts for enhanced safety. Designed for versatility, the device also supports capacitor measurements up to 4mF and includes a temperature measurement function. Its intelligent circuit design incorporates an automatic power-saving mode to prolong battery life. Additionally, it is equipped with comprehensive false detection protection and can safely endure up to 600V (30KVA), with built-in alarms for overvoltage and overcurrent conditions.

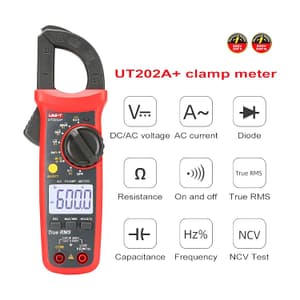

Features:

• True RMS
• LCD backlight

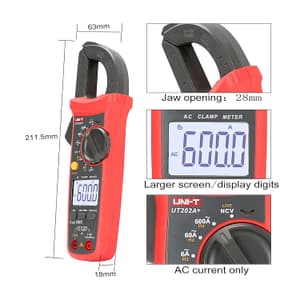

• Larger screen and display digits
• 60mF large capacitance measurement
• Neutral/live wire test
• Auto range
• Data hold
• Non-Contact Voltage (NCV)
• MAX/MIN
• Continuity test
• Low battery indication
• Diode
• Auto power off

Technical Data:

	Range	Accuracy
AC Current (A)	600A	±(2%+10)
AC current frequency response	50Hz~100Hz
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency response	45Hz~400Hz
High voltage frequency	5~600V (on voltage position)	10Hz~10kHz
DC voltage (V)	600V	±(0.5%+2)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	60mF	±(4%+5)

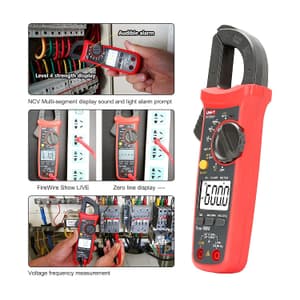

Applications:

• Industrial Electricity
• Residential electricity
• Air conditioning
• Automobile

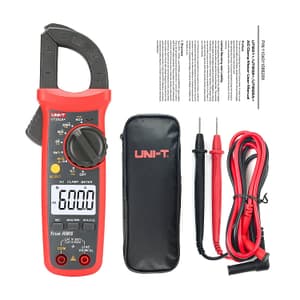

Package Content:

• 1x Digital Clamp Meter
• 2x 1.5V battery (R03)
• Test leads
• English manual
