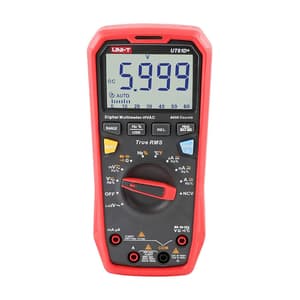

UNI-T 6000 Count True-RMS Digital Multimeter (HVAC), UT61D+
Roll over image to zoom zoom_in
- Weight: 350 Grams
- Product Type: Multimeter
- Display Count: 6000
- Bandwidth (Hz): 40Hz ~ 1kHz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5015 (Incl. of all taxes)
₹4250+ ₹765 GST (18%)
MRP ₹5000
SAVE 15%
7 Business Days
1 Set
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
UT61D+ are reliable true RMS digital multimeters with display counts 6000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

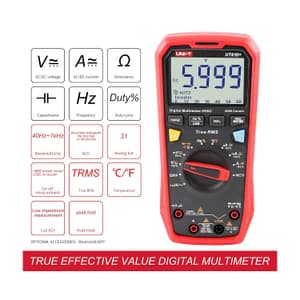

Features:
- True RMS

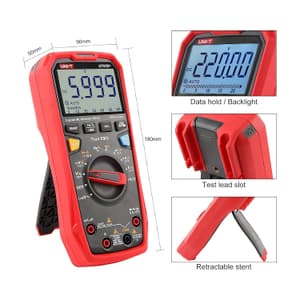

- Data hold / backlight
- Max / Min / Relative mode
- USB communication
- Input protection
- Diode / continuity test
- NCV (Audible / Visual alarm)
- LoZ ACV
- Peak Hold
Technical Data:
| Specifications | Range | Accuracy |
| AC voltage (V) | 1000V | ±(1%+3) |
| DC voltage (V) | 1000V | ±(0.5%+3) |
| AC current (A) | 20A | ±(1.2%+5) |
| DC current (A) | 20A | ±(1%+2) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(3%+5) |
| Frequency (Hz) | 10MHz | ±(0.1%+4) |
| Duty cycle (%) | 0.1% - 99.9% | ±(2%+5) |
| Temperature (°C / °F) | -40°C ~ 1000°C | ±(1%+3) |
| -40°F ~ 1832°F | ±(1%+6) |
Package Content:
- 1x TRMS Digital Multimeter
- 4x 1.5V battery (R03)
- Gold plated test leads
- USB cable
- Temperature probe
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00257 |
|---|---|
| Product Type | Multimeter |
| Model No | UT61D+ |
| Display Count | 6000 |
| Bandwidth (Hz) | 40Hz ~ 1kHz |
| Analog Bar | 31 |
| Power Supply | 4x 1.5V AAA Batteries (R03) |
| Dimensions (LxWxH) | 190 x 90 x 50 mm |
