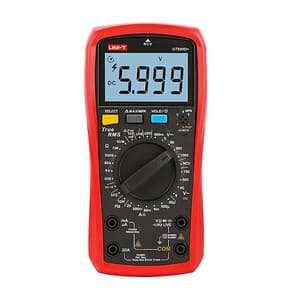

UNI-T 6000 Count True RMS Digital Multimeter, UT890D+
Roll over image to zoom zoom_in
- Weight: 346 Grams
- Product Type: Multimeter
- Display Count: 6000
- DC Voltage: 600mV / 6V / 60V / 600V / 1000V ±(0.5%+2)
- AC Voltage: 6V / 60V / 600V / 750V ±(0.8%+3)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1655.54 (Incl. of all taxes)
₹1403+ ₹252.54 GST (18%)
MRP ₹1650
SAVE 15%
7 Business Days
1 Set
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

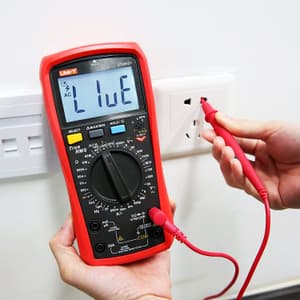

The UT890D+ is a 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Manual Range
- NCV
- hFE
- Diode Test
- Continuity Test
- Live
- True RMS
- Fuse blowing alarm
- Acousto-optic indication(NCV/continuity)
- High voltage false detection (1000Vrms)
- Current (AC/DC) mode memory
- Over-current alarm (≥20A)
- Low Battery Indication (≤2.5V)
- Data Hold
- REL
- Max/Min (V, A)
- Auto Power Off (15Min)
- Back light (30s)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00247 |
|---|---|
| Product Type | Multimeter |
| Model No | UT890D+ |
| Display Count | 6000 |
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V ±(0.5%+2) |
| AC Voltage | 6V / 60V / 600V / 750V ±(0.8%+3) |
| ACV Frequency | 10Hz~10kHz ±(0.1%+5) |
| DC Current | 60µA / 600µA / 6mA / 60mA / 600mA / 20A ±(0.8%+8) |
| AC Current | 60µA / 600µA / 6mA / 60mA / 600mA / 20A ±(1%+12) |
| Resistance | 600 Ohm / 6k Ohm / 60k Ohm / 600k Ohm / 6M Ohm / 60M Ohm |
| Capacitor | 6.000nF / 60.00nF / 600.0nF / 6.000µF / 60.00µF / 600.0µF / 6.000mF / 60.00mF / 100.0mF ±(3%+10) |
| Frequency | 9.999Hz~9.999MHz ±(1.0%+5) |
| Operation Temperature | 0°C - 40°C |
| Safety | CAT II 1000V / CAT III 600V |
| Power | 2x 1.5V Batteries |
| Product Color | Red & Gray |
| Dimension (mm) | 183 x 88 x 56 mm |
