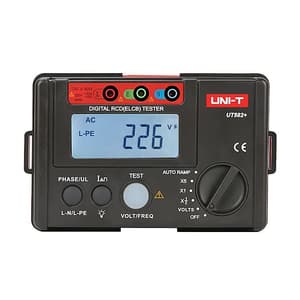

UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz~65Hz.

Features:

• Power Off Gear: Simply turn off the device when not in use.
• LCD backlight: Improves visibility in different lighting conditions.
• Data retention: Freezes and retains the displayed data for convenience.
• AUTO RAMP: Automatic ramp function for efficient operation.
• Disconnect buzzer: Acoustic alarm when the device is disconnected.
• Over-range indicator (OL): Indicates when the measurement exceeds the range.
• Protective fuses: Equipped with fuses to protect against overloads.
• Misoperation buzzer: Acoustic warning in case of incorrect operation.
• Power off buzzer: Acoustic alarm when the device is switched off.
• Full icon display: Comprehensive icon display for easy interpretation of information

Technical Data:

Specifications		Range		UT582+
RCD measurement	Range setting	Rated operating current	Trip time
	X 1/2	10mA / 20mA / 30mA / 100mA / 300mA / 500mA	2000ms	-10%~0%
	X 1	10mA / 20mA / 30mA / 100mA / 300mA	1000ms	0%~10%
		500mA	300ms	0%~10%
	X 5	10mA / 20mA / 30mA	40ms	0%~10%
	AUTO RAMP	10mA / 20mA / 30mA / 100mA / 300mA / 500mA	300ms	-10%~10%
	Trip time accuracy	±(2%+2)
	Operating voltage (Freq.)	195V ~ 253V

Package Content:

• 1x Digital RCD (ELCB) Tester
• Test line
• Carrying Bag
• Elastic Strap
• Gift box
• English manual
