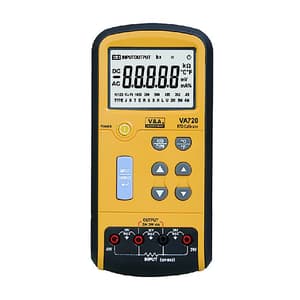

RTD Calibrator is a exactitude measurement and source instrument, it can be use to calibrate the RTD* transmitter (include most impulse transmitter). RTD Calibrator can measure or simulate 7 difference types of RTD (? or?), and measure or simulate the Resistance. But it could not use to measurement or source at a same time.

Features:

• Maximum voltage applied between any jack and earth ground or between any tow jack: 30V
• Temperature coefficient: ±0.01%/°C on 0°C~18°C and 28°C~50°C
• Relative humidity: 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C
• RTD Process Calibrator is an exactitude measurement and source instrument, it can be used to calibrate the RTD* transmitter (including most impulse transmitters).

Maintenance:

Cleaning	Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents.
Calibration	Calibrate your calibrator once a year to ensure that it performs according to its specifications.
Replacing the Battery	Please change the battery when the LCD indicates Turn off the power of the Calibrator, When you change the battery, and screw off the breechblock on the battery cabinet cover, then take off it and instead the fresh AAA 1.5V battery.

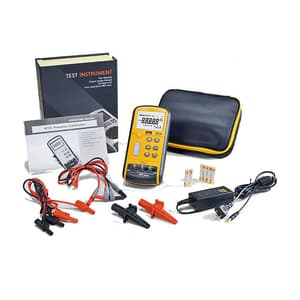

Package Content:

• 1x Calibrator
• 2x Pair of test leads and alligator clips
• 6x AAA 1.5V battery
• 1x user’s manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
